Condenser Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Discharge the refrigerant. (See REFRIGERANT CHARGING .)
  3. Remove the front under cover No. 1. (See FRONT UNDER COVER NO. 1 REMOVAL/INSTALLATION .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5] .)
  5. Remove the following parts:
    1. Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)
    2. Air cleaner, air hose and fresh air duct component (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)
    3. Coolant reserve tank (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)
    4. Cooling fan component (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)
    5. Radiator (See RADIATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)
  6. Remove the bolts.
  7. Disconnect the cooler hose (HI) and cooler pipe. Do not allow remaining compressor oil in the refrigerant line to spill. (See REFRIGERANT LINE REMOVAL/INSTALLATION .)
    CAUTION:
    • If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunctions could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.

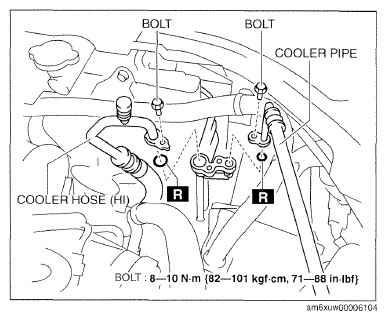

    Fig 1: Cooler Hose And Cooler Pipe With Torque Specifications
    G09786873Courtesy of MAZDA MOTORS CORP.
  8. Remove the condenser, being careful not to allow remaining compressor oil in the condenser to spill. (See CONDENSER INSTALLATION NOTE .)
    CAUTION:
    • If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunctions could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
  9. Install in the reverse order of removal.
  10. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5] .)
  11. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)

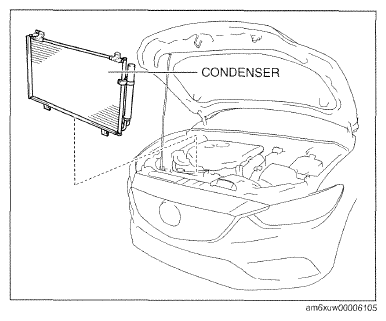

    Fig 2: Identifying Condenser
    G09786874Courtesy of MAZDA MOTORS CORP.
