HVAC Basic System Location Index

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

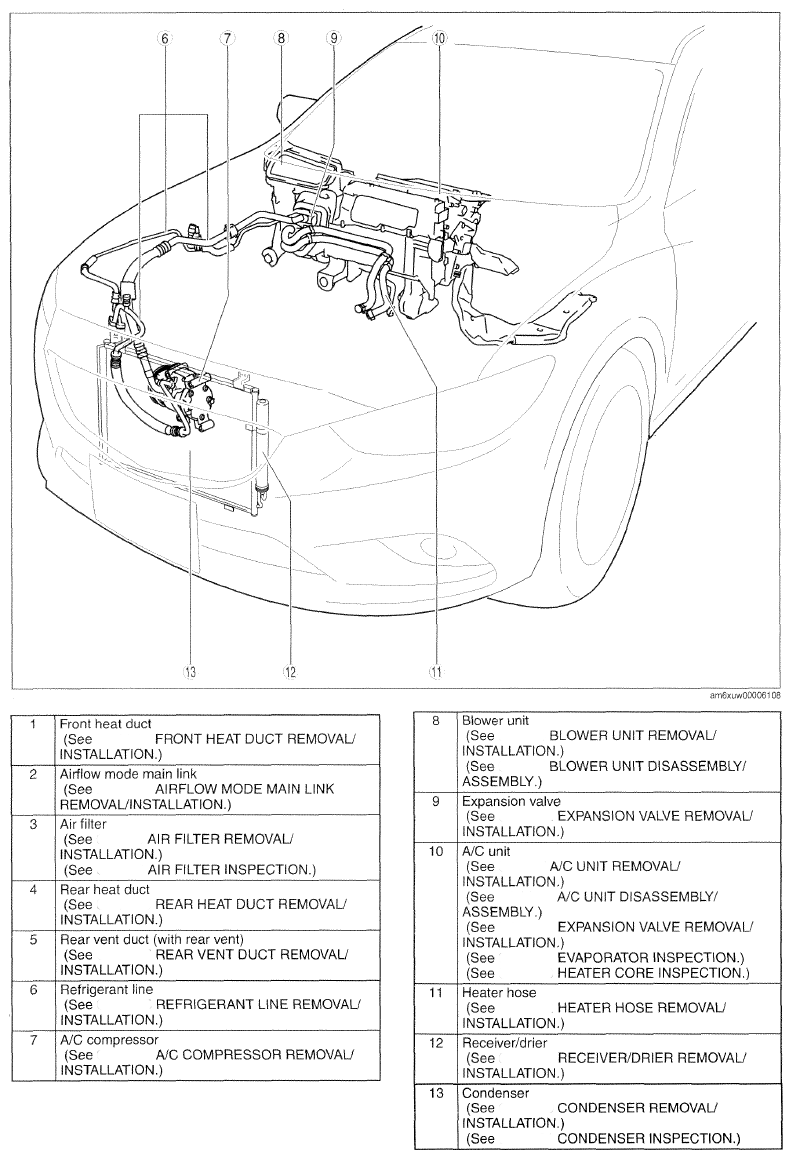

Fig 1: HVAC Basic System Components Location (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

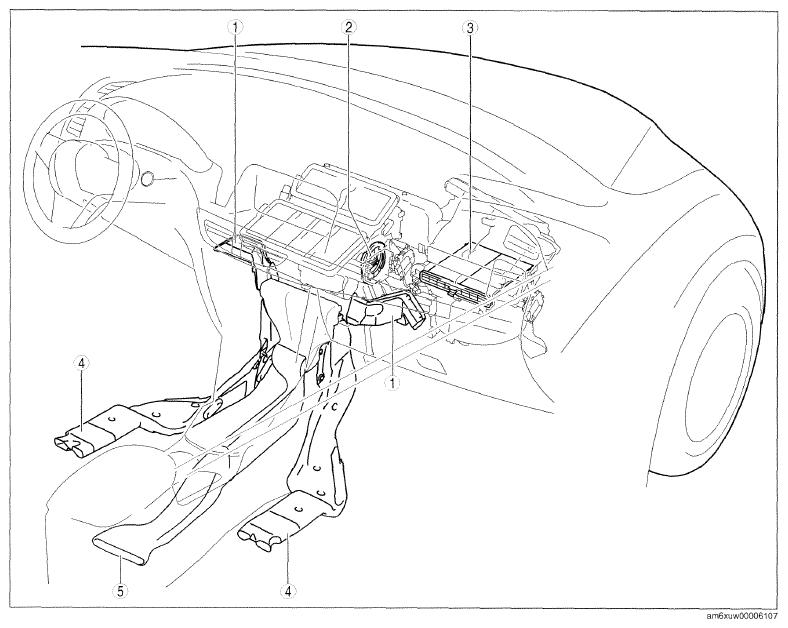

Fig 2: HVAC Basic System Components Location (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
