Commander Switch Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The audio unit communicates with the commander switch and records the presence/non-presence of the commander switch when the ignition is switched to ACC or ON (engine off or on) after connecting the negative battery cable.
  • If the commander switch is installed with the negative battery cable connected when the audio unit records that there is no commander switch, the commander switch does not operate.
  • For the commander switch installation/removal, disconnect the negative battery cable, switch the ignition to ACC or ON (engine off or on) after the servicing is completed, and the audio unit records the presence/non-presence of the commander switch.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

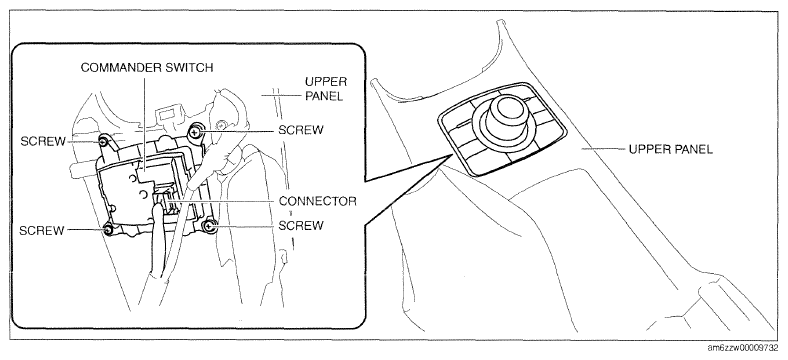

    Fig 1: Identifying Commander Switch Component And Upper Panel
    G09788429Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the commander switch component from the upper panel.
  6. Remove the commander switch screws.

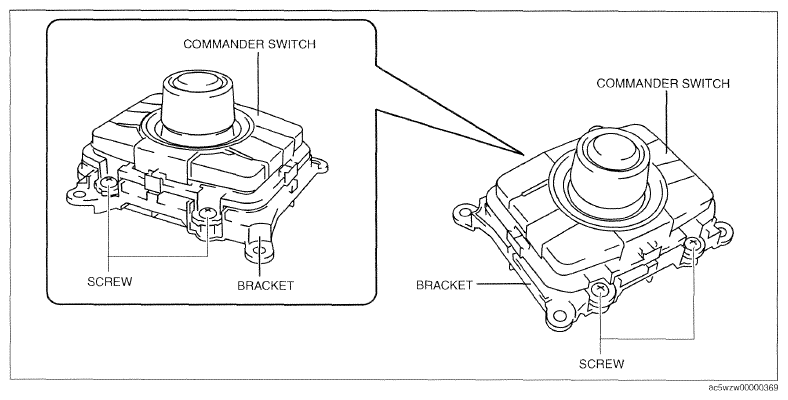

    Fig 2: Identifying Commander Switch And Screw
    G09788430Courtesy of MAZDA MOTORS CORP.
  7. Remove the commander switch from the bracket.
  8. Install in the reverse order of removal.
