Lighting Systems Location Index: Interior

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

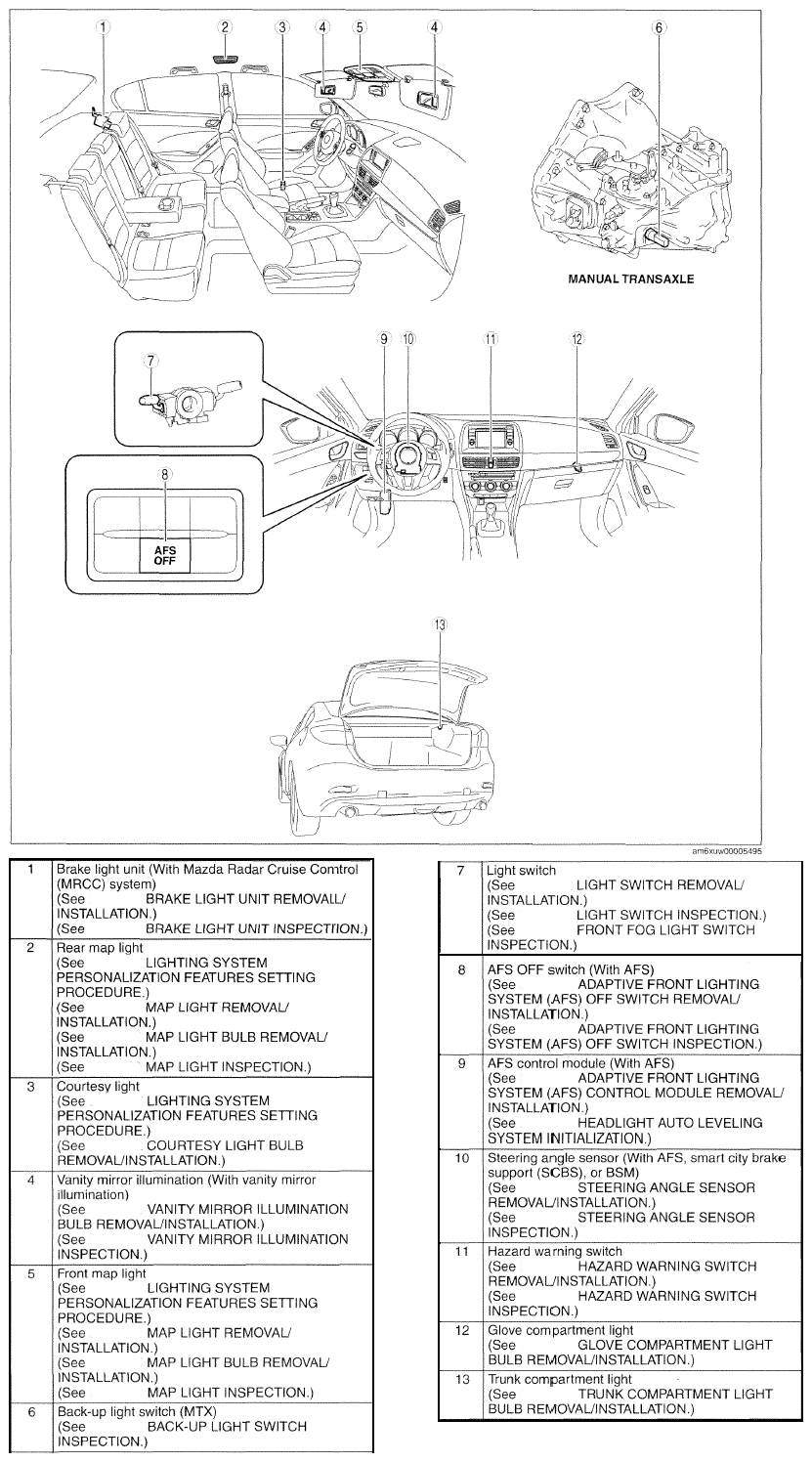

Fig 1: Lighting System Component Locations - Interior
G09788078Courtesy of MAZDA MOTORS CORP.
