Front Map Light

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Open the sunglasses holder.
  3. Remove the screws.

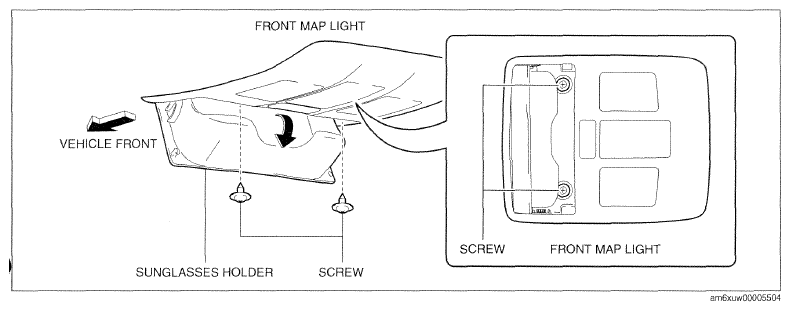

    Fig 1: Removing Front Map Light
    G09788209Courtesy of MAZDA MOTORS CORP.
  4. Move the front map light in the direction of the arrow (1) shown in the figure to pull out the pin from the bracket.
    CAUTION:
    • Be careful not to pull the connector out strongly when removing the front map light. Otherwise, the contact surface of the wiring harness secured to the headliner will come off and the wiring harness could be pulled out. If the front map light is installed with the wiring harness pulled out, the wiring harness could get caught between the headliner and front map light bracket resulting in an open or short circuit in the wiring harness.

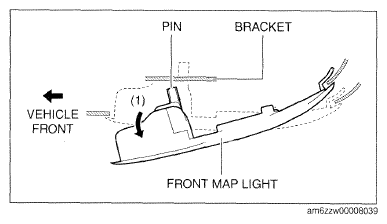

    Fig 2: Moving Front Map Light
    G09788210Courtesy of MAZDA MOTORS CORP.
  5. Move the front map light in the direction of the arrow (2) shown in the figure to pull out the front map light hook from the headliner.

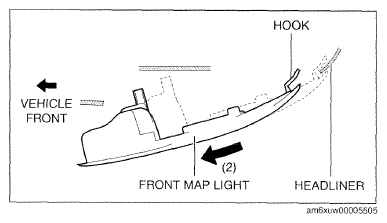

    Fig 3: Moving Front Map Light
    G09788211Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connector.

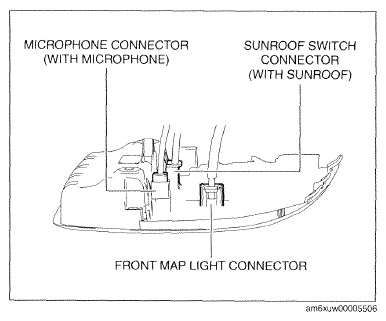

    Fig 4: Identifying Front Map Light Connector
    G09788212Courtesy of MAZDA MOTORS CORP.
  7. Remove the front map light.
  8. Install in the reverse order of removal.

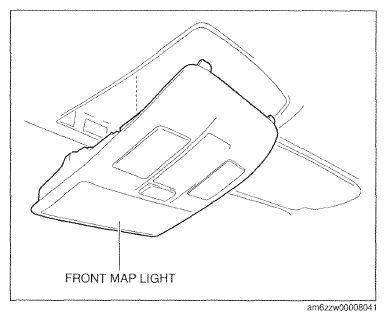

    Fig 5: Identifying Front Map Light
    G09788213Courtesy of MAZDA MOTORS CORP.
