Glass Panel Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the sunshade.
Fully close the glass panel.
Remove screws.

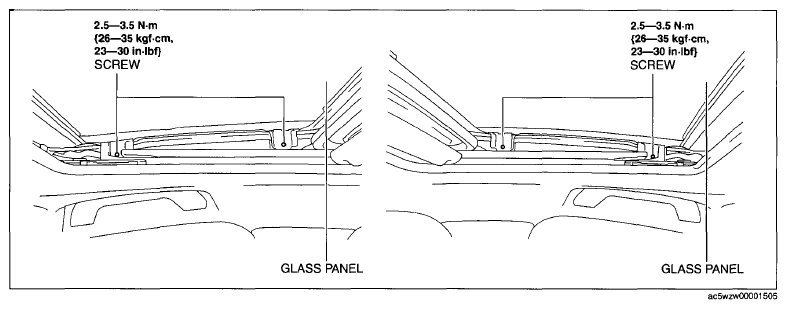

Fig 1: Glass Panel Mounting Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

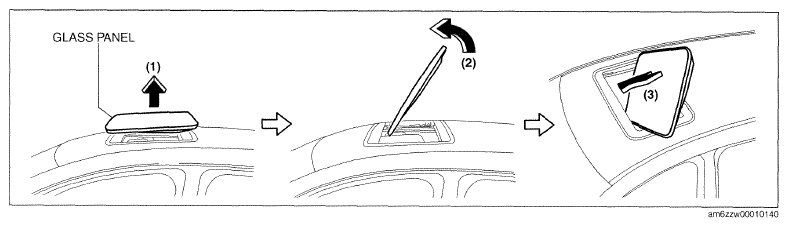

Remove the glass panel in the direction of the arrow in the order of (1), (2), (3) shown in the figure.

Fig 2: Removing Glass Panel
Courtesy of MAZDA MOTORS CORP.
Peel the weatherstrip off the glass panel. (See WEATHERSTRIP INSTALLATION NOTE .)
Install in the reverse order of removal.
