Sunshade Disassembly Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Pull the sunshade in the direction of the arrow in the order of (1), (2) and remove it.
CAUTION:
- The sunshade may contact the sunroof frame and the handle area may be damaged. Remove the sunshade by sliding it in the direction of arrow (2) shown in the figure while lifting it in the direction of arrow (1).

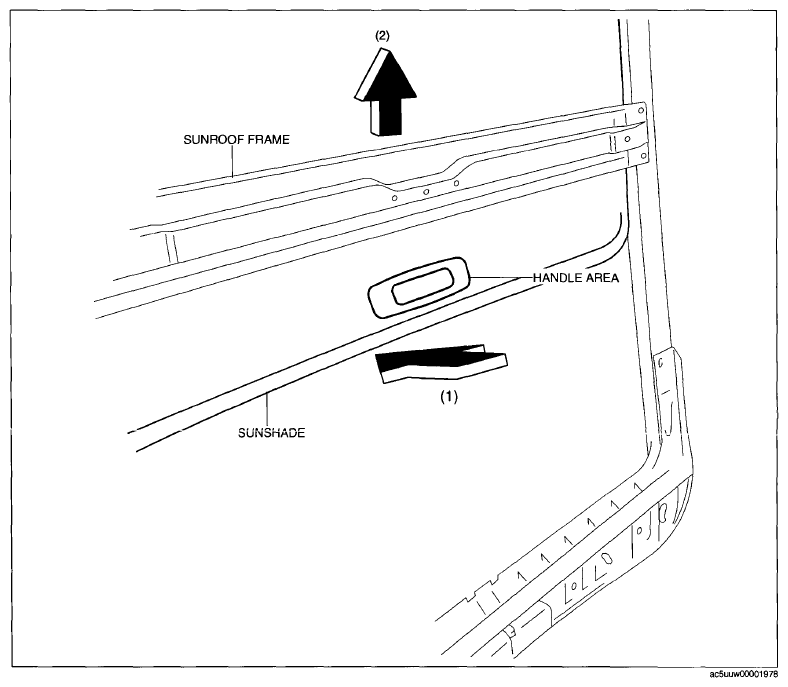

Fig 1: Removing Sunshade
Courtesy of MAZDA MOTORS CORP.
