Shift Control Module Removal/Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Verify that the shift control module is in the neutral position.
NOTE:
- If the shift control module is in the neutral position, the shift lever with the weight can be moved up and down to a large extent.

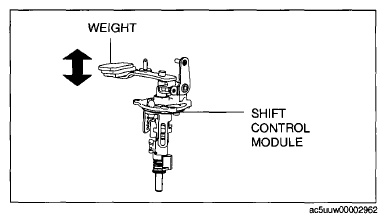

Fig 1: Checking Shift Control Module Neutral Position
Courtesy of MAZDA MOTORS CORP.

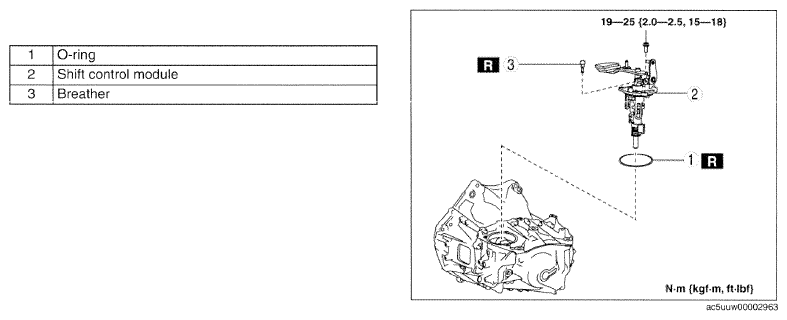

Install the shift control module in the order shown in the figure

Fig 2: Shift Control Module, Breather And O-Ring With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

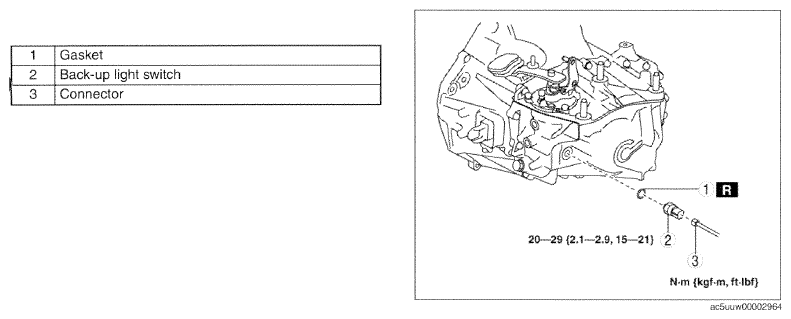

Install the back-up light switch in the order shown in the figure

Fig 3: Back Up Light Switch, Connector And Gasket With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

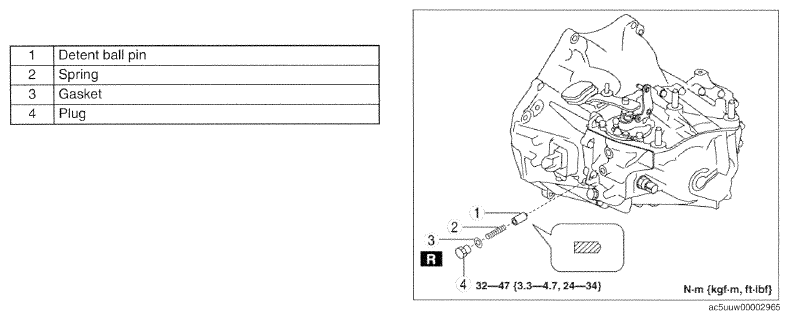

Install the detent ball pin in the order shown in the figure

Fig 4: Plug, Gasket, Spring And Detent Ball Pin With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

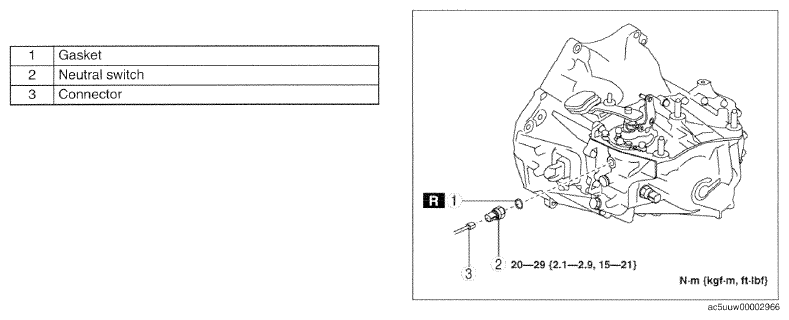

Install the neutral switch in the order shown in the figure

Fig 5: Neutral Switch, Connector And Gasket With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Connect the control cable to the transaxle.
Make sure that the shift lever can be shifted smoothly.
Install the battery tray and battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Install the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .
Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)

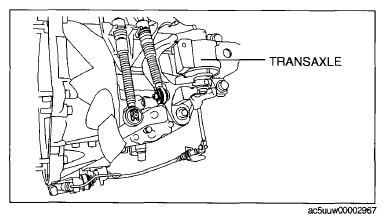

Fig 6: Identifying Control Cable Transaxle
Courtesy of MAZDA MOTORS CORP.
