Audio Unit Connector End View

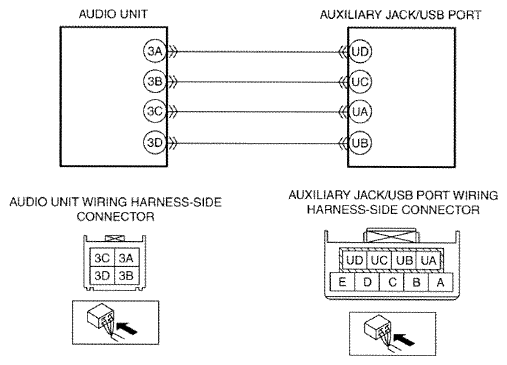

Fig 1: Audio Unit Connector End View
G09783516Courtesy of MAZDA MOTORS CORP.

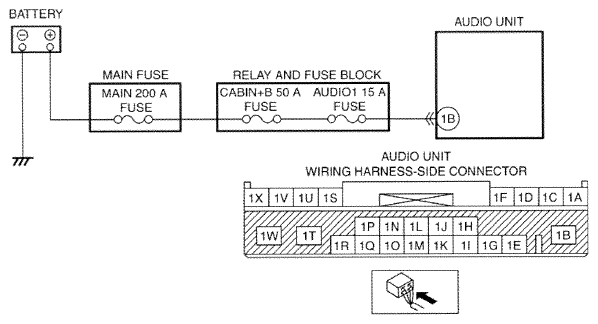

Fig 1: Audio Unit Connector End View
G09783517Courtesy of MAZDA MOTORS CORP.
