Cluster Switch Connector End View

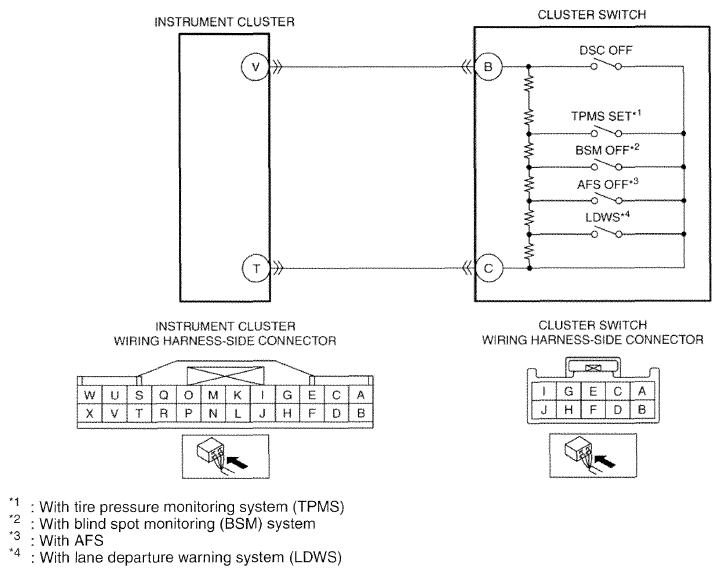

Fig 1: Cluster Switch Connector End View
G09783498Courtesy of MAZDA MOTORS CORP.

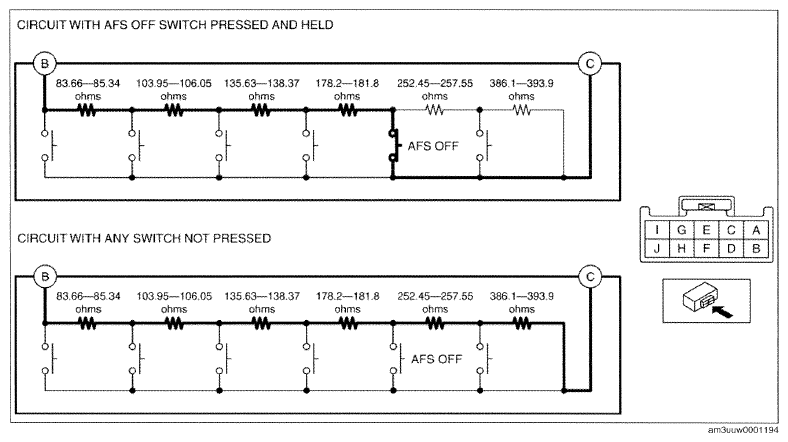

Fig 1: Cluster Switch Connector End View
G09772443Courtesy of MAZDA MOTORS CORP.


Fig 1: Cluster Switch Connector End View
G09783083Courtesy of MAZDA MOTORS CORP.

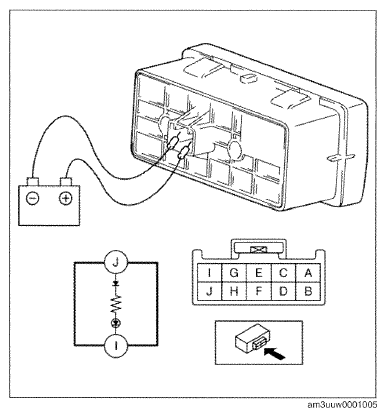

Fig 1: Cluster Switch Connector End View
G09784433Courtesy of MAZDA MOTORS CORP.
