Microphone Connector End View

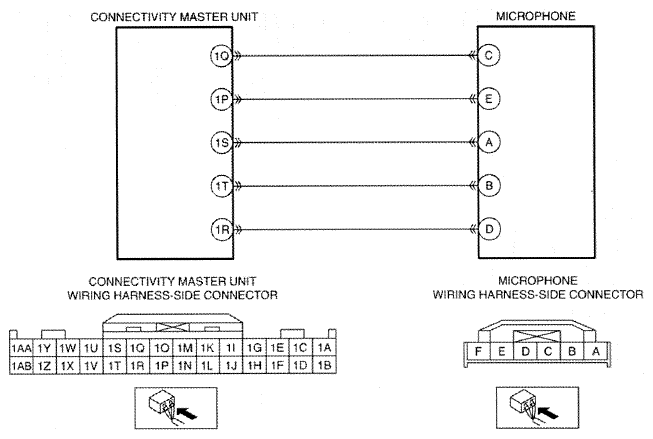

Fig 1: Microphone Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
