Steering Angle Sensor Connector End View

Fig 1: Steering Angle Sensor Connector End View
G09772445Courtesy of MAZDA MOTORS CORP.

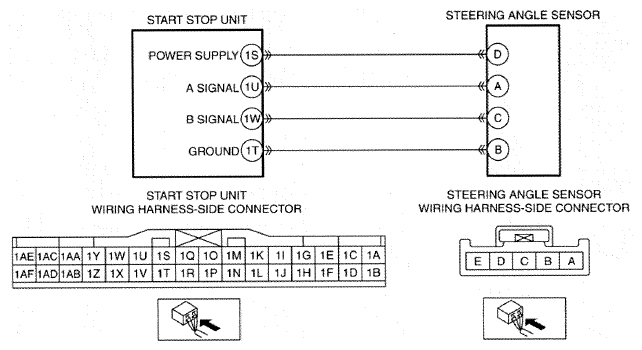

Fig 1: Steering Angle Sensor Connector End View
G09771867Courtesy of MAZDA MOTORS CORP.
