Bracket Installation Note

Insert the bracket bolt into the steering column and install the projecting part of the bracket to the installation area of the steering column.

Fig 1: Inserting Bracket Bolt Into Steering Column
Courtesy of MAZDA MOTORS CORP.

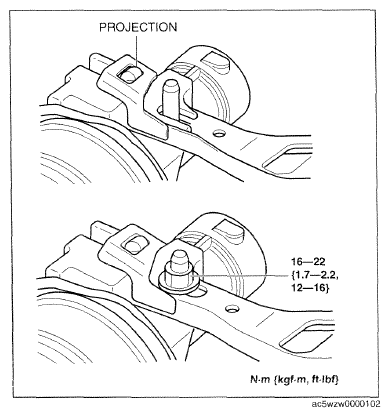

Verify that the projection on the steering column is inserted into the hole in the bracket as shown in the figure and tighten the nut to the specified torque.

Fig 2: Inserting Hole Bracket Of Steering Column With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
