On-Vehicle Installation

Install the gasket to the transaxle case.
Install the dowel pin to the control valve body.
NOTE:
- If the dowel pin remains in the transaxle case, remove the dowel pin from the transaxle case and install the dowel pin to the control valve body.

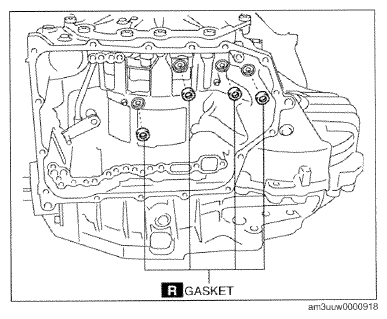

Fig 1: Identifying Gasket From Transaxle Case
Courtesy of MAZDA MOTORS CORP.
Install the control valve body so that the parking assist lever component is engaged in the gap between the two surfaces of the spool part of the manual valve.

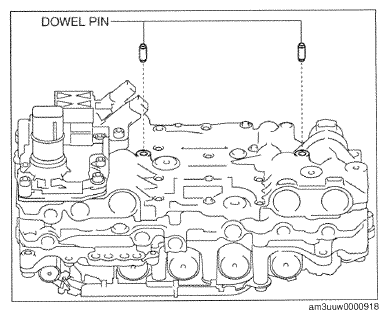

Fig 2: Identifying Control Valve Body Dowel Pin
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Install the control valve body so that the turbine/input shaft speed sensor, output shaft speed sensor, and control valve body connector do not contact the transaxle case.

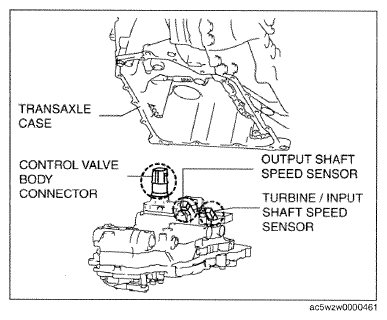

Fig 3: Identifying Control Valve Body Connector, Turbine/Input Shaft Speed Sensor And Transaxle Case
Courtesy of MAZDA MOTORS CORP.

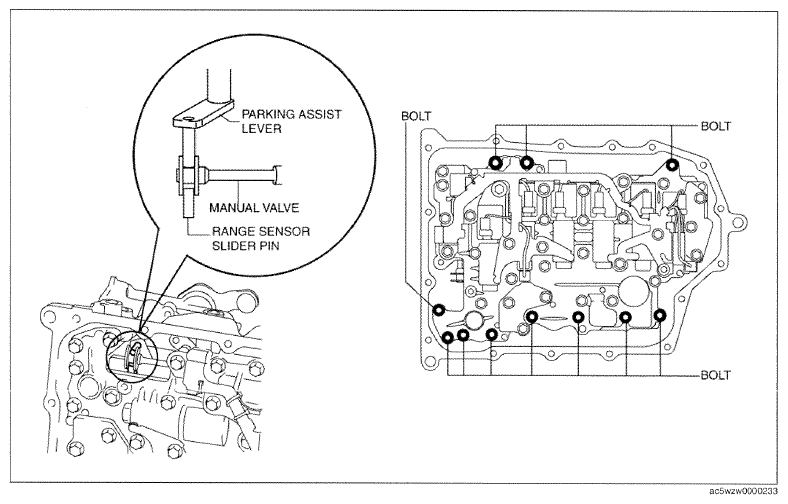

Fig 4: Identifying Parking Assist Lever, Manual Valve, Bolts And Sensor
Courtesy of MAZDA MOTORS CORP.

Tightening torque

9-10 N.m {92-101 kgf.cm, 80-88 in.lbf}
Move the manual valve in both directions of the arrow and verify that the manual valve is correctly connected to the parking assist lever component and the slider pin for the range sensor.
NOTE:
- If the manual valve only moves in the gap between the parking assist lever component surface and the manual valve surface, the manual valve and the parking assist lever component are correctly engaged.
Fig 5: Identifying Transaxle Manual Valve
Courtesy of MAZDA MOTORS CORP.
Install the oil strainer O-rings.
NOTE:
- If there is a large amount of foreign material at the bottom of the oil pan, replace the oil strainer with a new one.
Fig 6: Identifying Oil Strainer O-Ring
Courtesy of MAZDA MOTORS CORP.
Install the oil strainer.
Tightening torque

9-10 N.m {92-101 kgf.cm, 80-88 in.lbf}

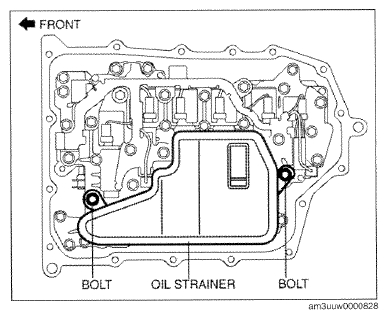

Fig 7: Identifying Oil Strainer And Bolts
Courtesy of MAZDA MOTORS CORP.
Apply a light coat of silicone sealant (TB1217E or equivalent) to the contact surfaces of the oil pan and transaxle case.
CAUTION:
- Clean any remaining silicone sealant on the contact surface of the transaxle case and oil pan, and degrease the sealant area. Otherwise, oil could leak.
Fig 8: Identifying Transaxle Sealant Applying Area
Courtesy of MAZDA MOTORS CORP.
Install the oil pan with new bolts before the applied sealant starts to harden.
Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
Install the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT .)
Install a new hose clamp to the position shown in the figure.

Fig 9: Installing Oil Pan Bolts
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the hose clamp is reused it could cause ATF leakage, therefore use a new hose clamp.
- Install the hose clamp tab to within the range shown in the figure.
  A: 210°

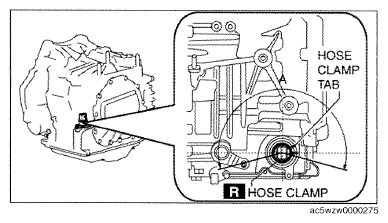

  Fig 10: Identifying Hose Clamp Position
  Courtesy of MAZDA MOTORS CORP.
- Install the hose clamp so that it does not interfere with the top and bottom flanges of the oil seal to maintain the waterproofing integrity.

  Fig 11: Identifying Oil Seal Hose Clamp Installation Range
  Courtesy of MAZDA MOTORS CORP.
Connect the control valve body connector.
CAUTION:
- Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
- Verify that there is no fluid or foreign matter adhering to the connector before connecting the connector.
- Insert the connector straight as the connector terminal could be damaged.
- Rotate the connector lever until a click is heard.

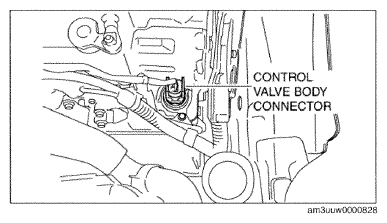

Fig 12: Identifying Control Valve Body Connector
Courtesy of MAZDA MOTORS CORP.
Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Perform the "TCM configuration" (Control valve body Replacement). (See TCM CONFIGURATION .)
Perform the "Initial Learning" (Control valve body Replacement). (See INITIAL LEARNING .)
Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
Install the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Perform the "Road Test". (See ROAD TEST .)
