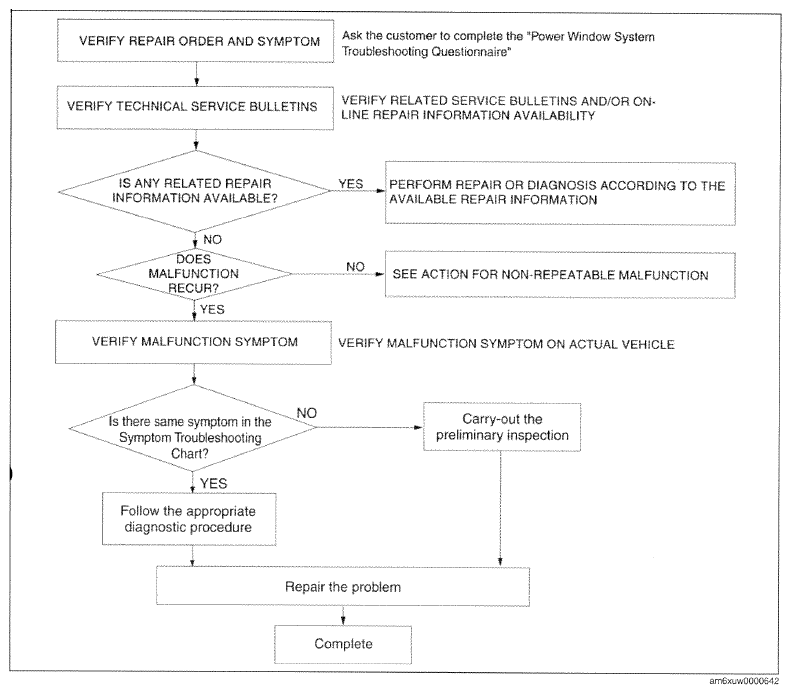

Troubleshooting Procedure
Courtesy of MAZDA MOTORS CORP.
- Slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions.
CAUTION:
- If any of the following conditions continues indefinitely, the power window motor will heat up causing the protection circuit (integrated in power window motor) to operate. If this occurs, the operation of the power window motor protection circuit temporarily disables the power windows.
- Continuous up and down operation of the power window.
- Continuously pulling up the power window switch while the window glass Is fully closed.
- Continuously pressing the power window switch while the window glass fully opened.
- If the power window motor has a temporary malfunction and the power window main switch is operated, the power window system transfers to malfunction mode by the power window control module.
- While the power window system is in malfunction mode, the power windows cannot be operated using the auto open/close function.
- The power window system reverts to normal operation after performing the Power Window initialization Procedure.
NOTE:
- If the following operations have been performed, initial setting is reset, and auto up/down operation is disabled. Therefore, performing the initial setting is necessary.
- Negative battery cable disconnected
- Power window main switch connector disconnected
- Power window system power supply fuse removed
