Differential Disassembly: Notes

  1. Perform the "DIFFERENTIAL BACKLASH ADJUSTMENT". (See DIFFERENTIAL BACKLASH ADJUSTMENT .)
  2. Disassemble the differential in the order shown in the figure.

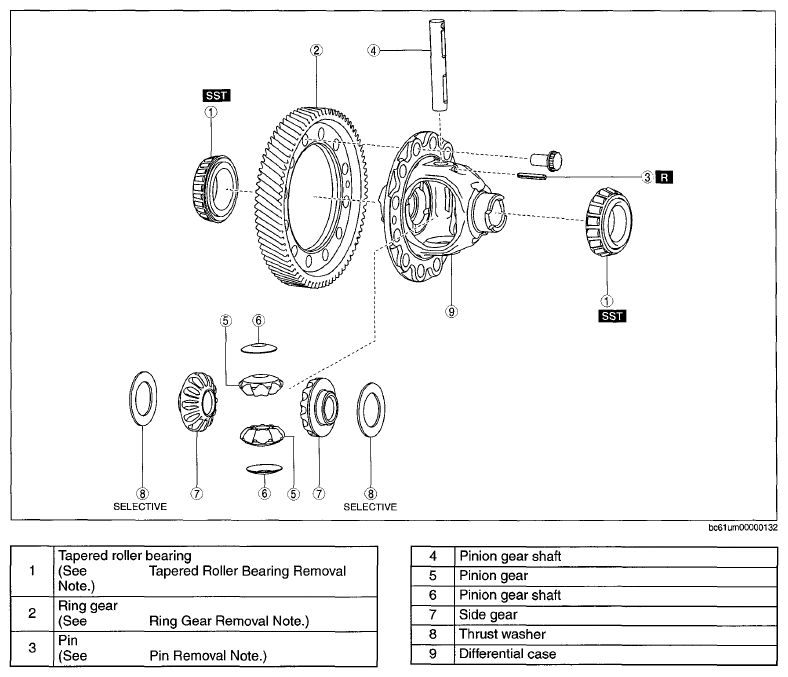

    Fig 1: Identifying Differential Disassembling Order
    G08347910
