Door Lock Actuators 2-Step Unlocking (Reference)

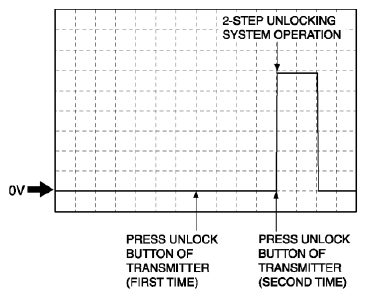

Fig 1: Door Lock Actuators 2-Step Unlocking (Reference) Graph

Courtesy of MAZDA MOTORS CORP.

• Terminal: 5K (+) ↔ body ground (-)
• Oscilloscope setting: 2 V/DIV (Y), 200 ms/DIV (X), DC range
• Measurement condition: Door lock actuators 2-step unlocking
