Control Cable Removal/Installation

Disconnect the negative battery cable.
Remove the battery component. (ex: battery, battery tray) (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
Remove the fastener retaining insulator (No. 5) and set insulator (No. 5) aside. (See ENGINE EXHAUST SYSTEM REMOVAL/INSTALLATION .)
Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
Remove the center console. (See CENTER CONSOLE REMOVAL/INSTALLATION .)

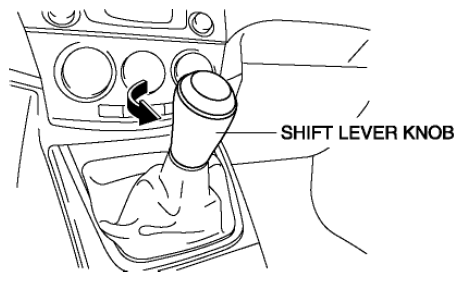

Remove the shift lever knob.

Fig 1: Shift Lever Knob
Courtesy of MAZDA MOTORS CORP.
Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
Remove the rear blower unit. (See REAR BLOWER UNIT REMOVAL/INSTALLATION .)

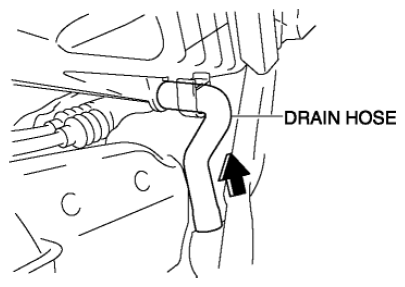

Disconnect the drain hose connected to A/C unit.

Fig 2: Drain Hose To A/C Unit
Courtesy of MAZDA MOTORS CORP.

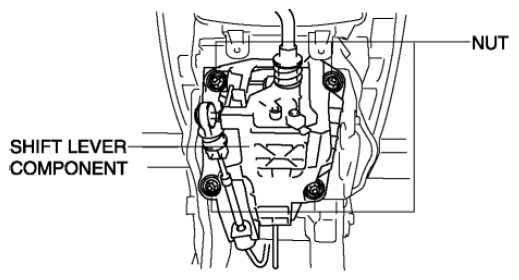

Remove the shift lever component installation nuts.

Fig 3: Shift Lever Nuts
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 16-22 N.m {1.7-2.2 kgf.m, 12-16 ft.lbf}

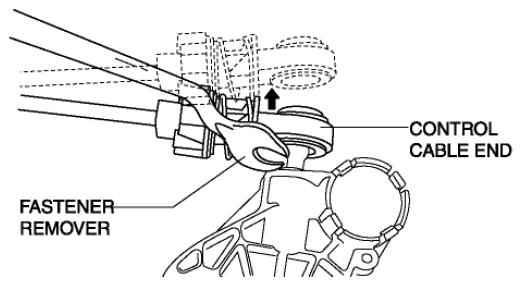

Remove the control cable end using a fastener remover.

Fig 4: Removing Control Cable End Using Fastener Remover
Courtesy of MAZDA MOTORS CORP.

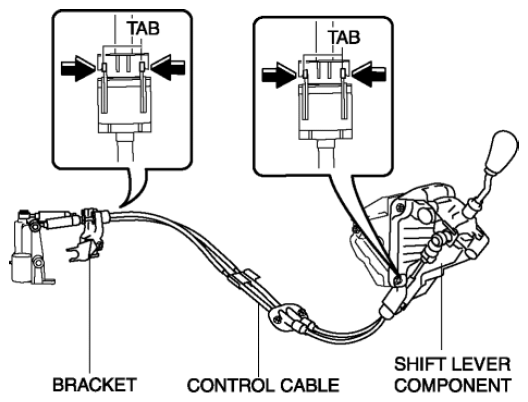

Press the tabs on the control cable as shown below and disconnect the control cable from the shift lever component.

Fig 5: Pressing Tabs On Control Cable
Courtesy of MAZDA MOTORS CORP.
Press the tabs on the control cable and disconnect the control cable from the bracket.

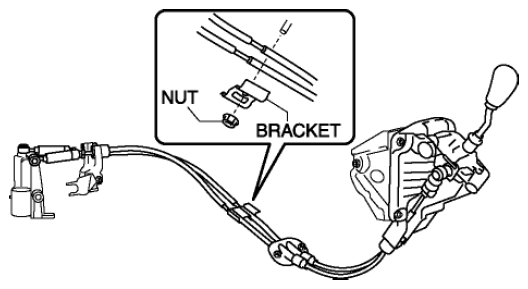

Remove the bracket as shown below.

Fig 6: Cable Bracket
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}

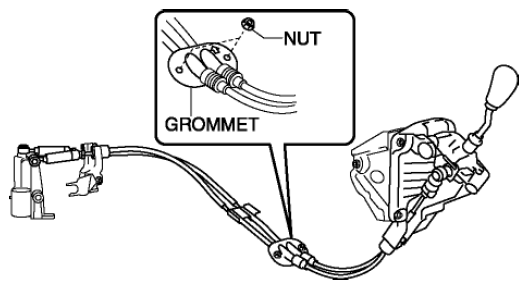

Remove the fastening nuts for the grommet.

Fig 7: Cable Bracket Nuts
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 6.9-9.8 N.m {71-99 kgf.cm, 62-86 in.lbf}
Remove the control cable using two people.
1. While pressing the shift side of the control cable from the cabin, pull it out to the engine compartment.

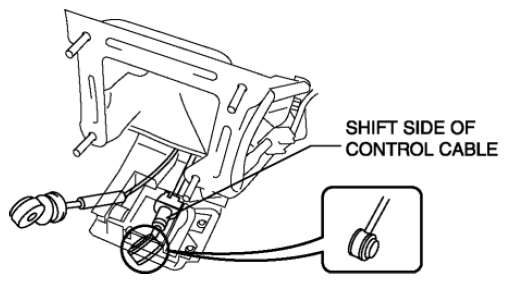

  Fig 8: Pressing Shift Side Of Control Cable From Cabin
  Courtesy of MAZDA MOTORS CORP.

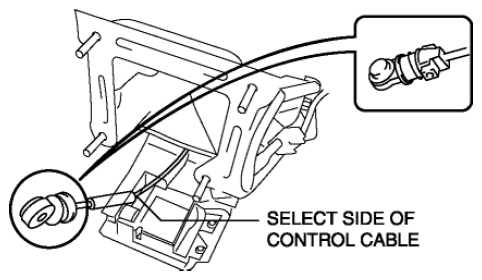

2. While pressing the select side of the control cable from the cabin, pull it out to the engine compartment.

  Fig 9: Pressing Select Side Of Control Cable From Cabin
  Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
