Keyless Entry System Operation Inspection

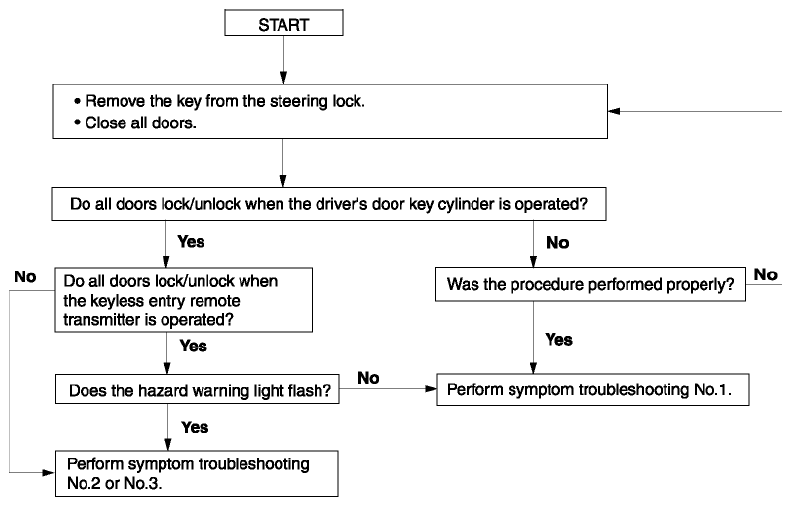

Fig 1: Keyless Entry System Operation Inspection Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
