Connector Terminal Check Method

  1. Check the connection condition of each female terminal.
  2. Insert male terminal; fit female terminal size to female terminal and check to see whether malfunction is in female terminal or not.

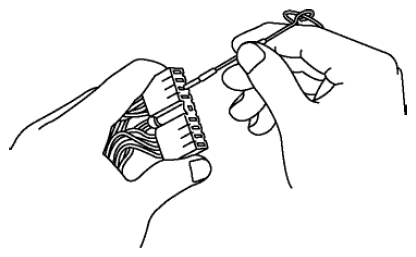

    Fig 1: Checking Connector Terminal Method
    G08150593Courtesy of MAZDA MOTORS CORP.
