Symptom Troubleshooting [Abs/Dynamic Stability Control (DSC)]
- Verify the symptoms, and perform troubleshooting according to the appropriate number.

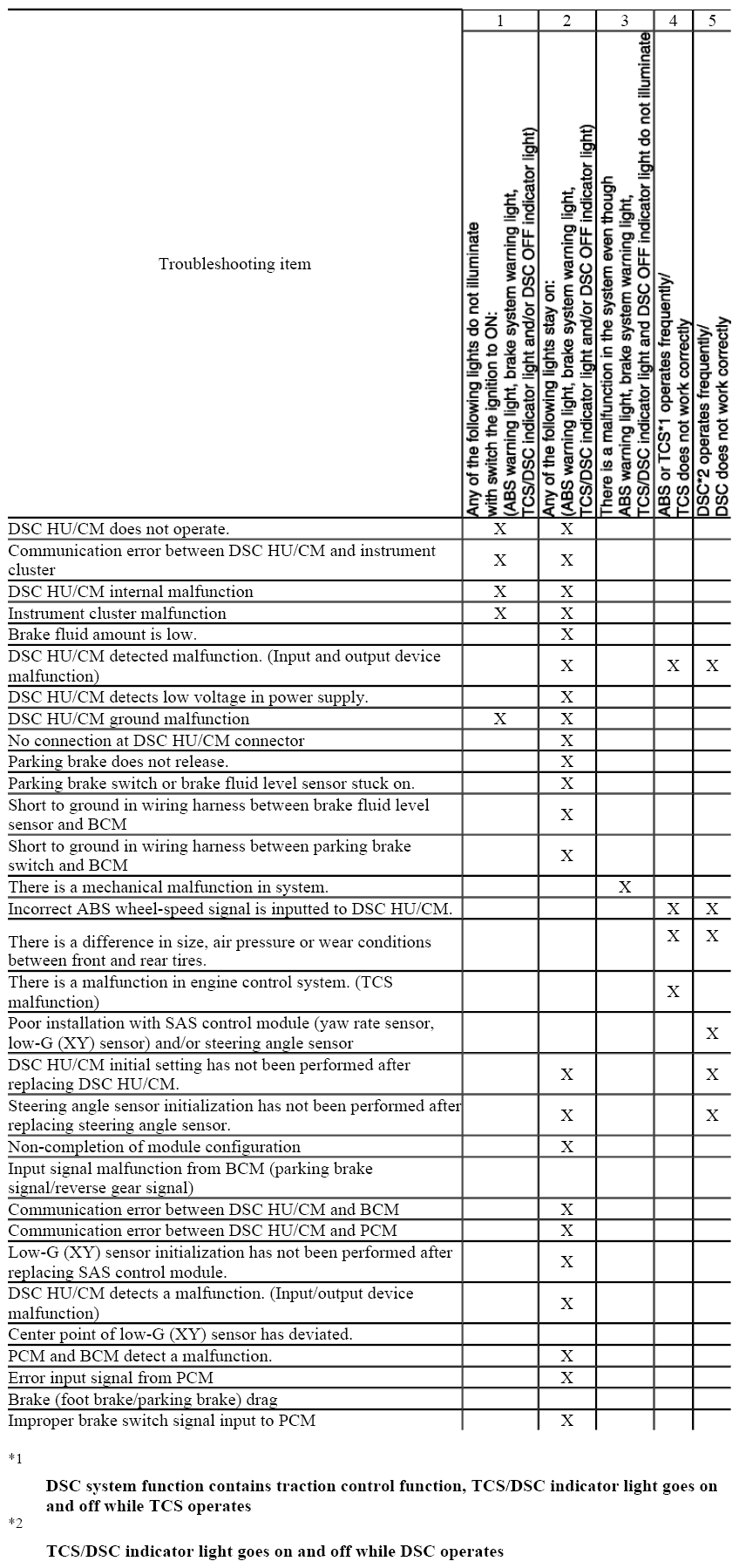

| No. | Symptom |
|---|---|
| 1 | Any of the following lights do not illuminate with switch the ignition to ON:
|
| 2 | Any of the following lights stay on:
|
| 3 | There is a malfunction in the system even though ABS warning light, brake system warning light, TCS/DSC indicator light and DSC OFF indicator light do not illuminate |
| 4 | ABS or TCS*1 operates frequently |
| TCS does not work correctly | |
| 5 | DSC*2 operates frequently |
| DSC does not work correctly |
X: Applied
