Charging System

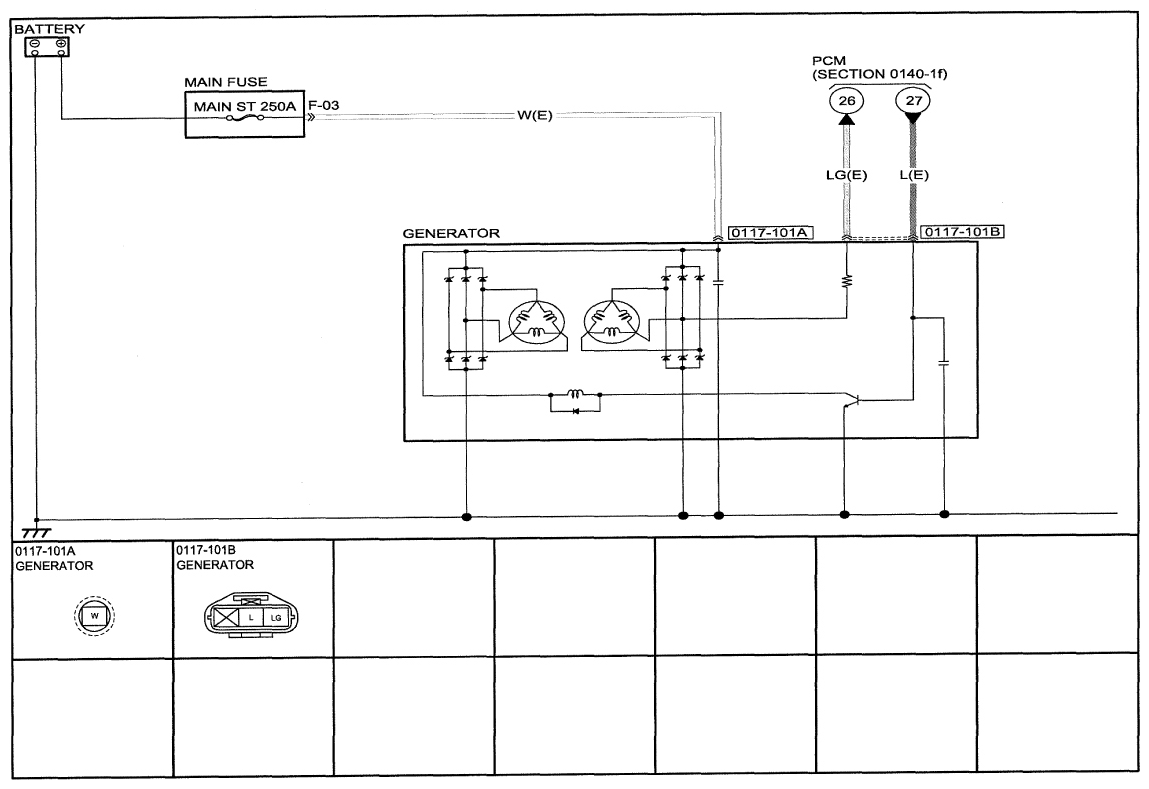

Fig 1: Charging System Wiring Diagram - 0117-1 (1 Of 2)
G09124991Courtesy of MAZDA MOTORS CORP.

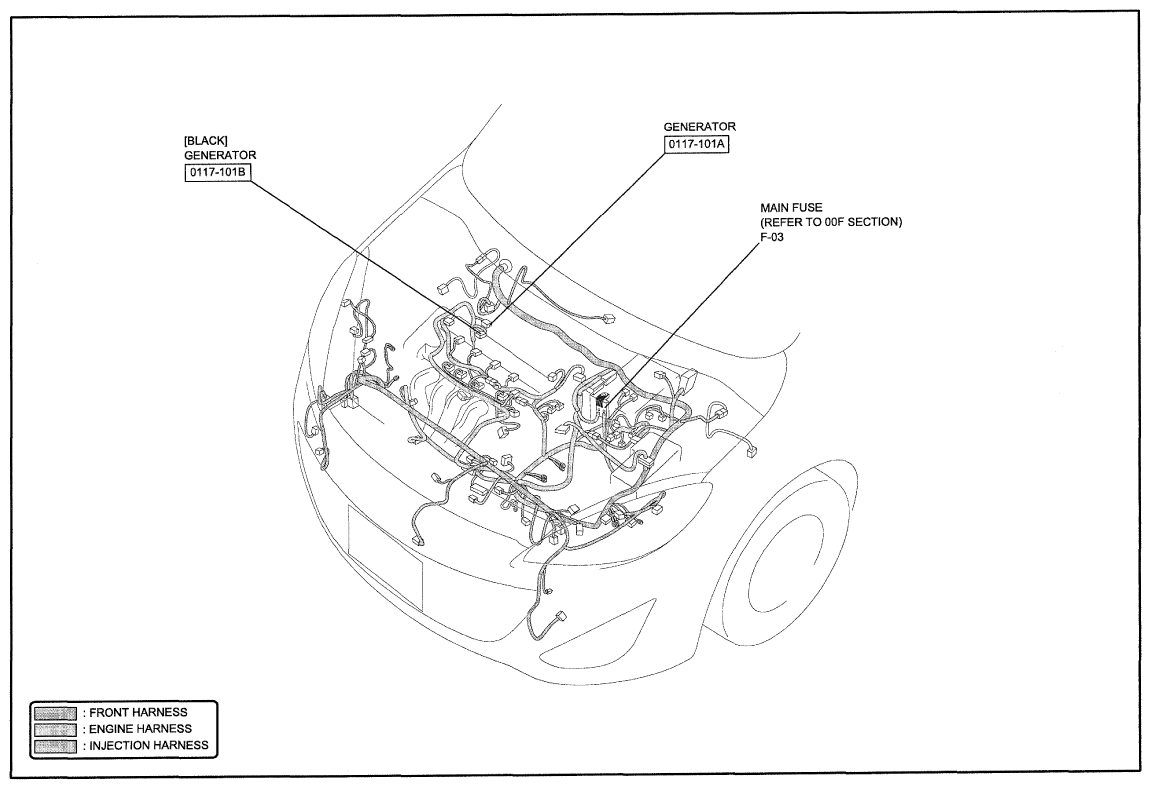

Fig 2: Charging System Wiring Diagram - 0117-1 (2 Of 2)
G09124992Courtesy of MAZDA MOTORS CORP.
