Fuel System

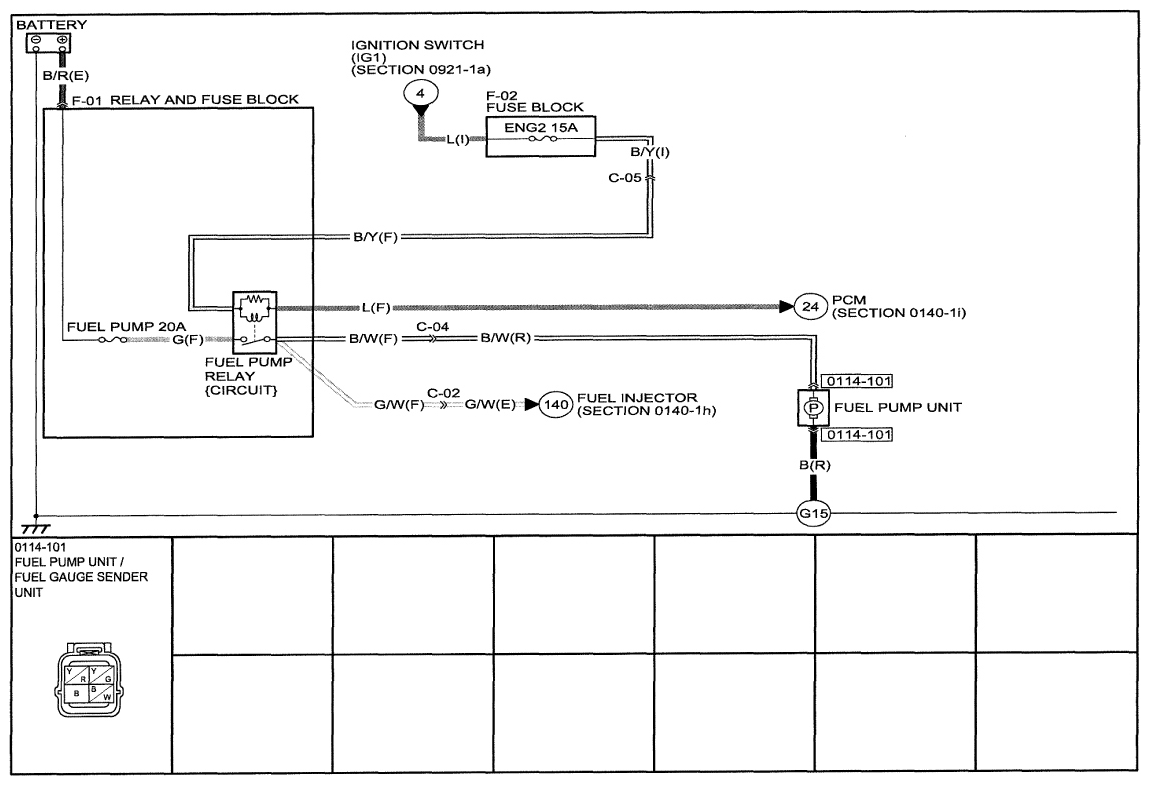

Fig 1: Fuel System Wiring Diagram - 0114-1 (1 Of 2)
G09124989Courtesy of MAZDA MOTORS CORP.

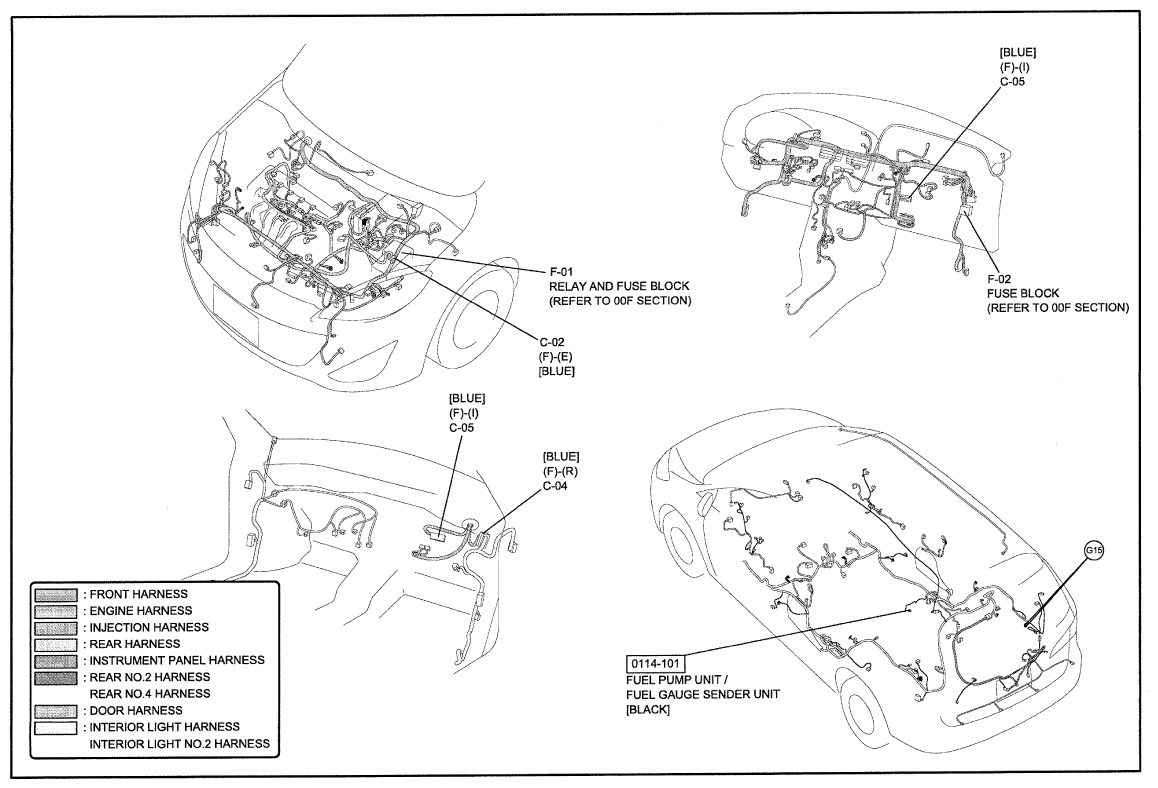

Fig 2: Fuel System Wiring Diagram - 0114-1 (2 Of 2)
G09124990Courtesy of MAZDA MOTORS CORP.
