Starting System

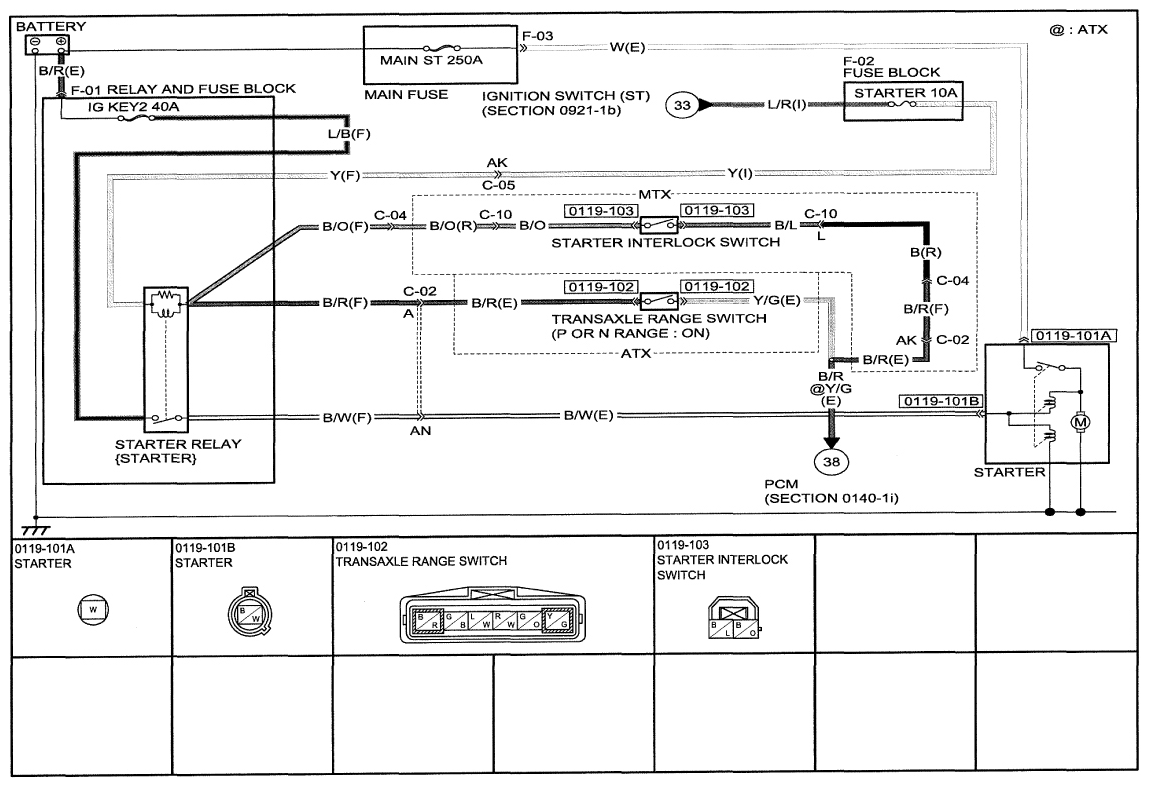

Fig 1: Starting System Wiring Diagram - 0119-1 (1 Of 2)
G09124993Courtesy of MAZDA MOTORS CORP.

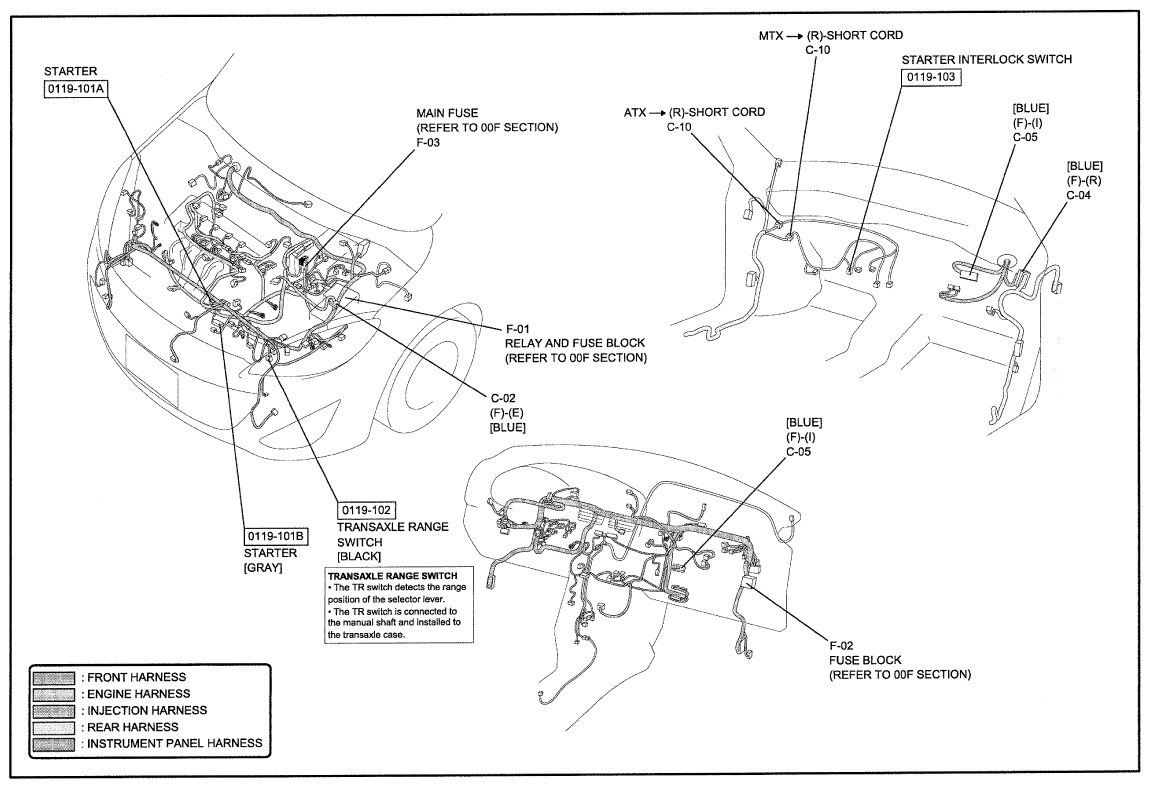

Fig 2: Starting System Wiring Diagram - 0119-1 (2 Of 2)
G09124994Courtesy of MAZDA MOTORS CORP.
