Key Interlock System/Shift-Lock System

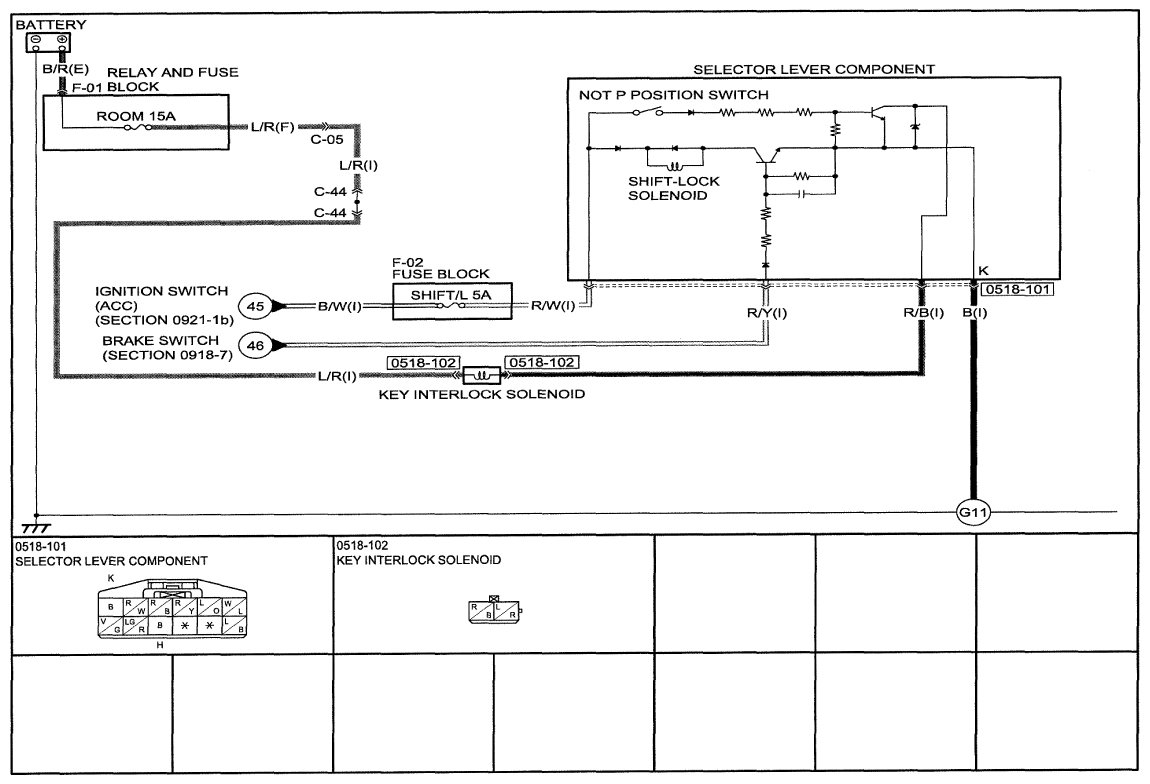

Fig 1: Key Interlock System/Shift-Lock System Wiring Diagram - 0518-1 (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

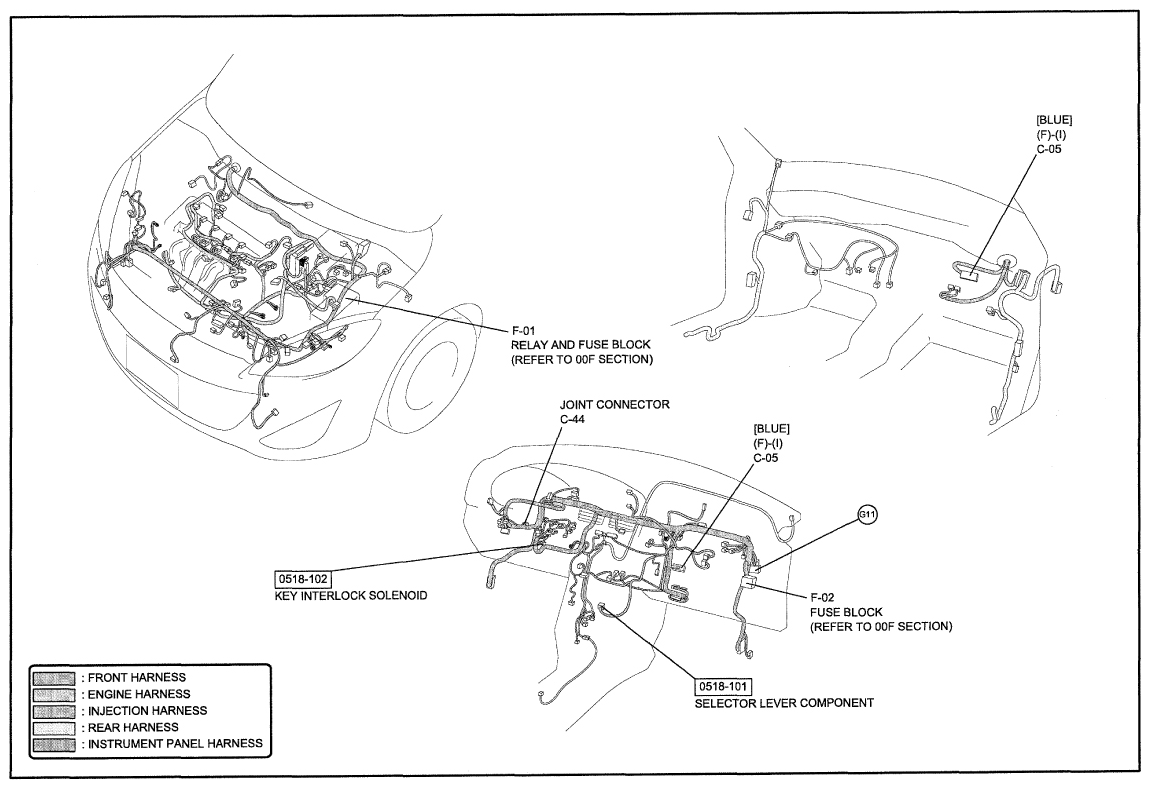

Fig 2: Key Interlock System/Shift-Lock System Wiring Diagram - 0518-1 (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
