Automatic Transaxle Control System

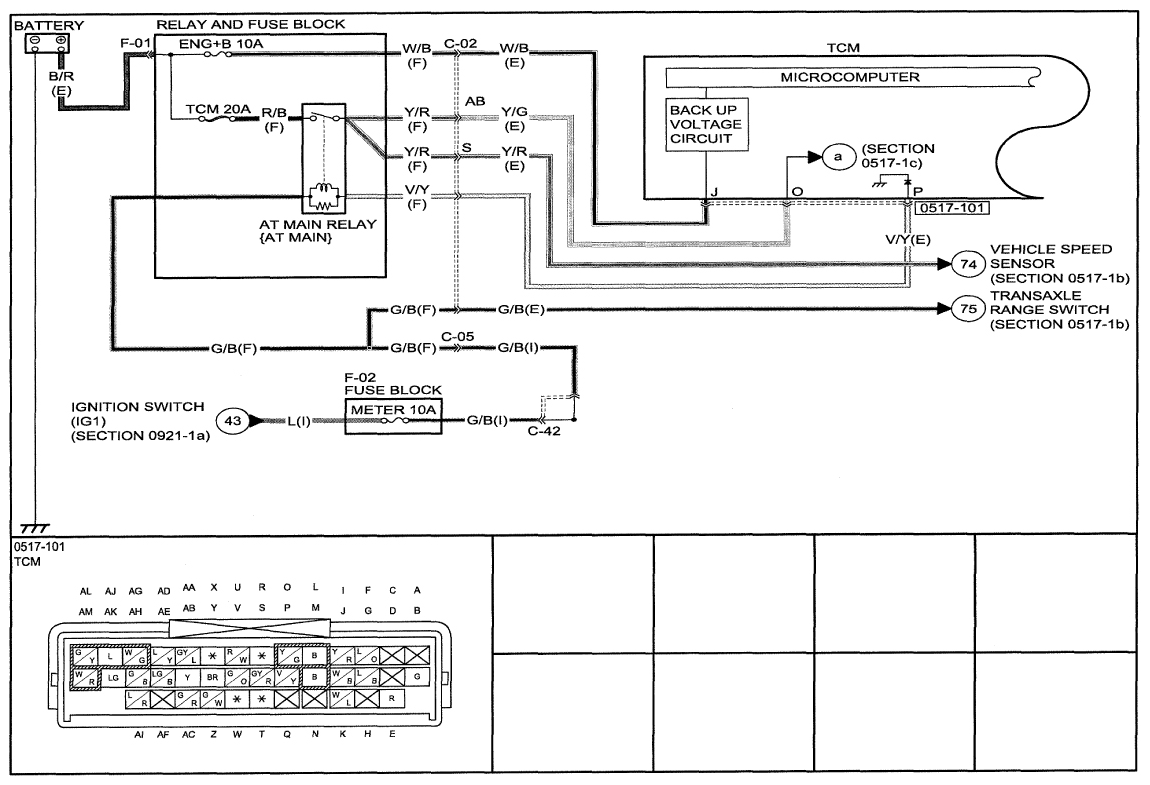

Fig 1: Automatic Transaxle Control System Wiring Diagram - 0517-1a (1 Of 2)
G09125021Courtesy of MAZDA MOTORS CORP.

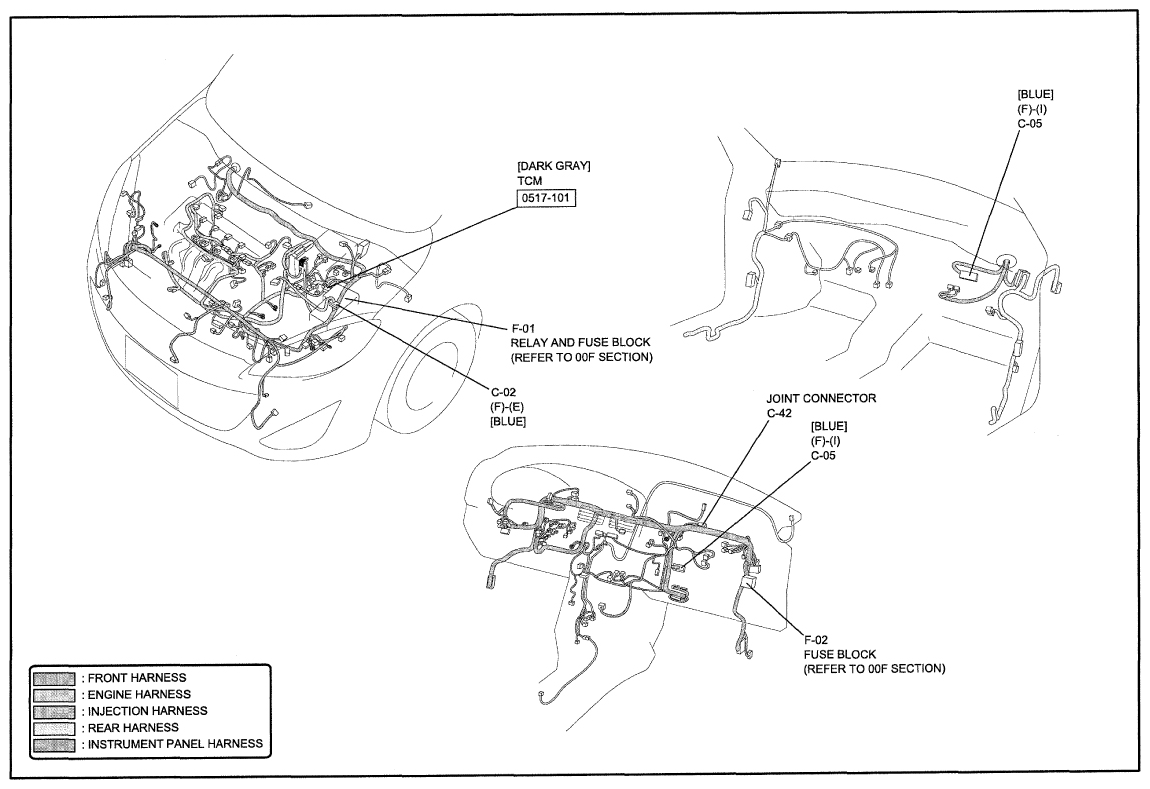

Fig 2: Automatic Transaxle Control System Wiring Diagram - 0517-1a (2 Of 2)
G09125022Courtesy of MAZDA MOTORS CORP.

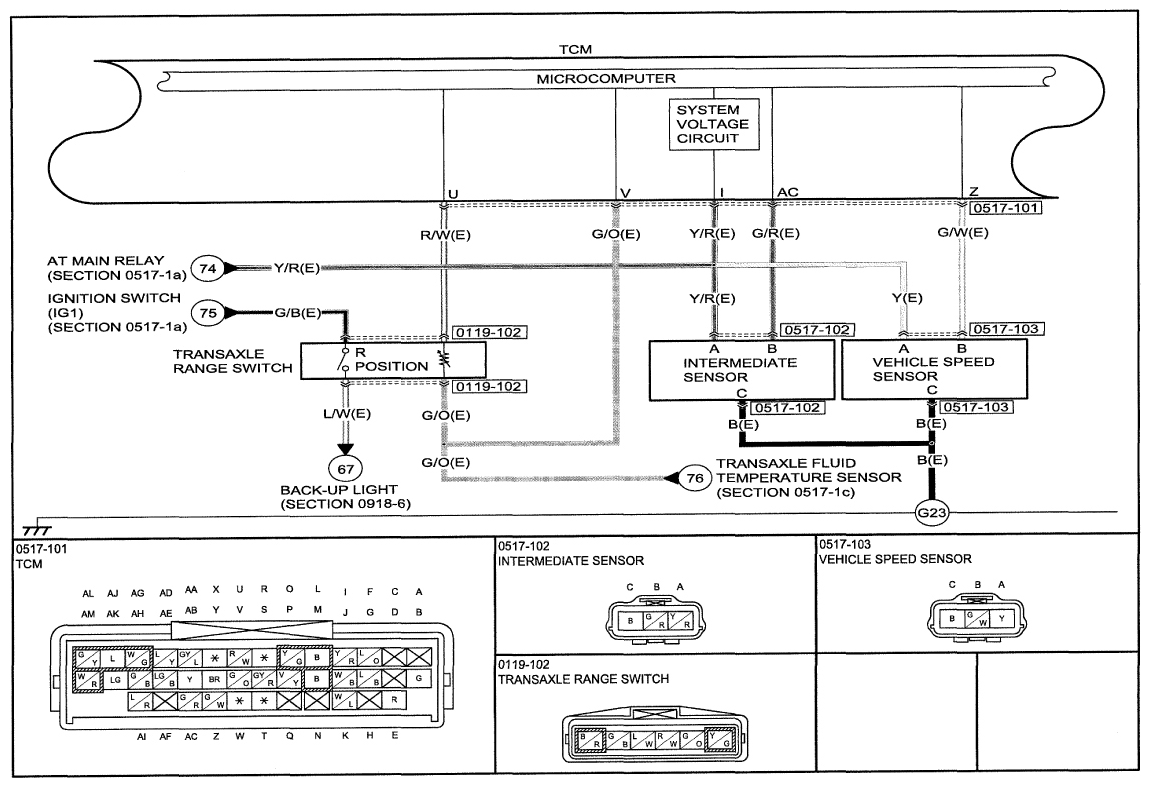

Fig 3: Automatic Transaxle Control System Wiring Diagram - 0517-1b (1 Of 2)
G09125023Courtesy of MAZDA MOTORS CORP.

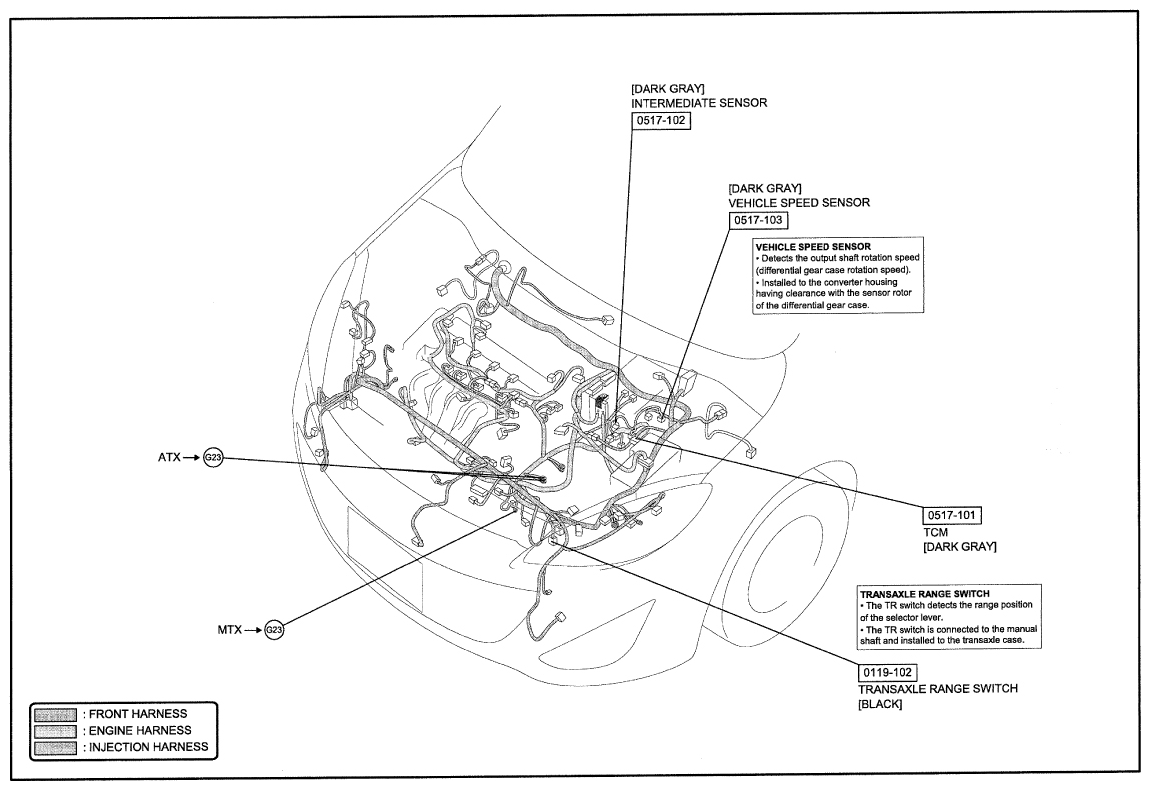

Fig 4: Automatic Transaxle Control System Wiring Diagram - 0517-1b (2 Of 2)
G09125024Courtesy of MAZDA MOTORS CORP.

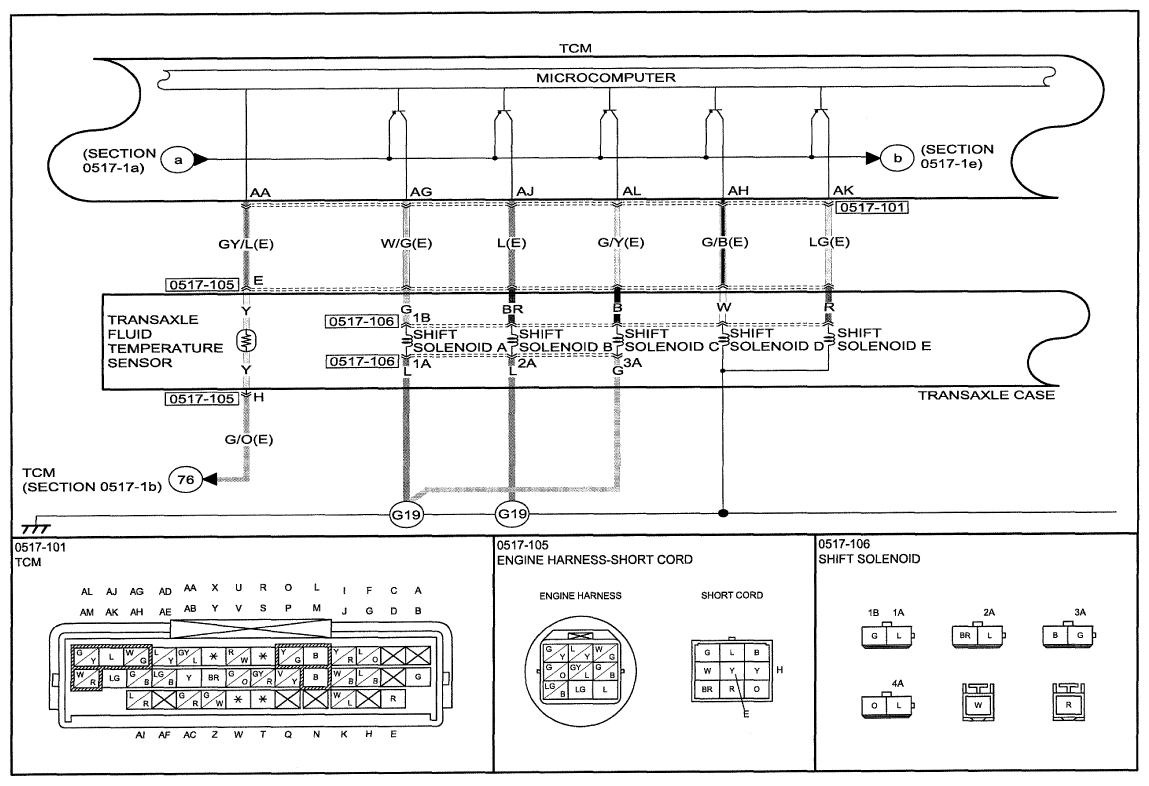

Fig 5: Automatic Transaxle Control System Wiring Diagram - 0517-1c (1 Of 2)
G09125025Courtesy of MAZDA MOTORS CORP.

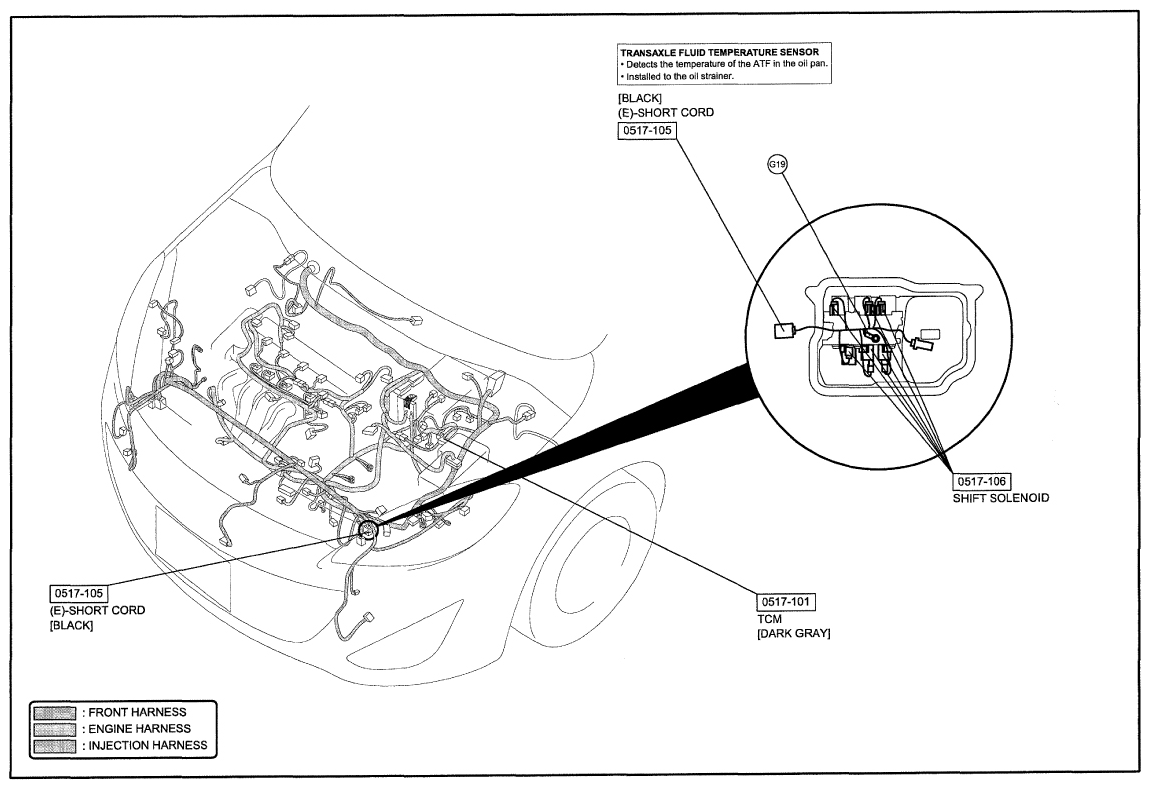

Fig 6: Automatic Transaxle Control System Wiring Diagram - 0517-1c (2 Of 2)
G09125026Courtesy of MAZDA MOTORS CORP.

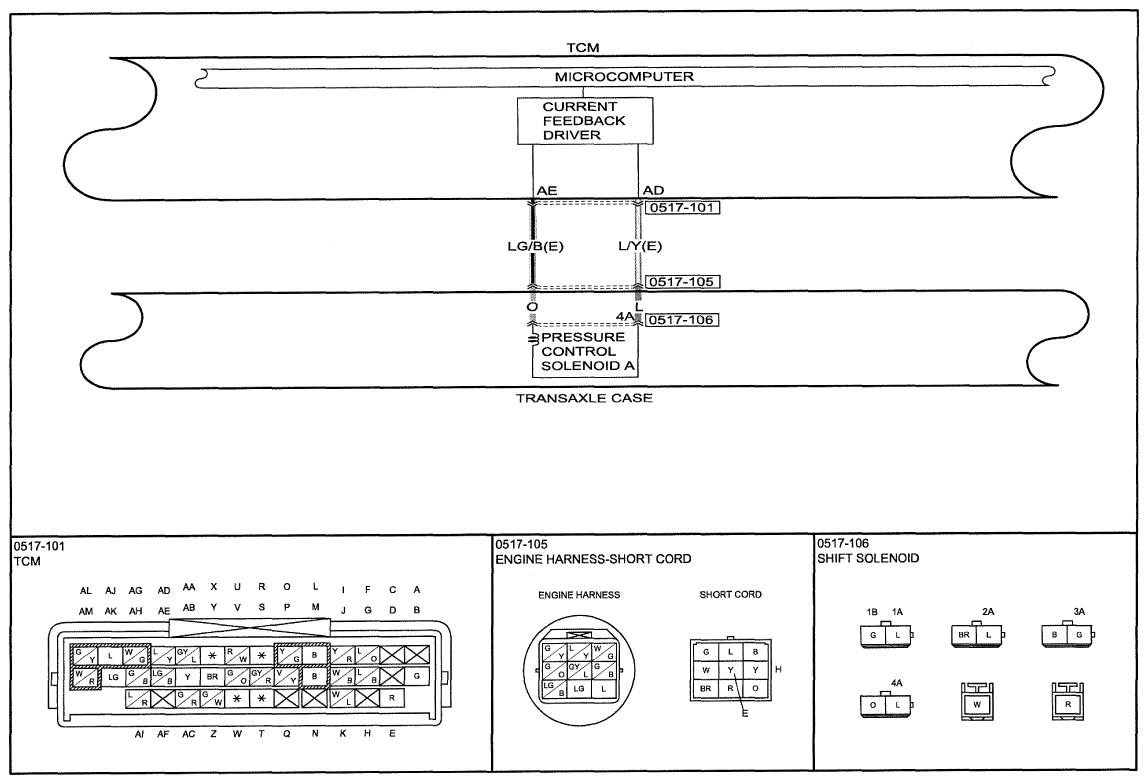

Fig 7: Automatic Transaxle Control System Wiring Diagram - 0517-1d (1 Of 2)
G09125027Courtesy of MAZDA MOTORS CORP.

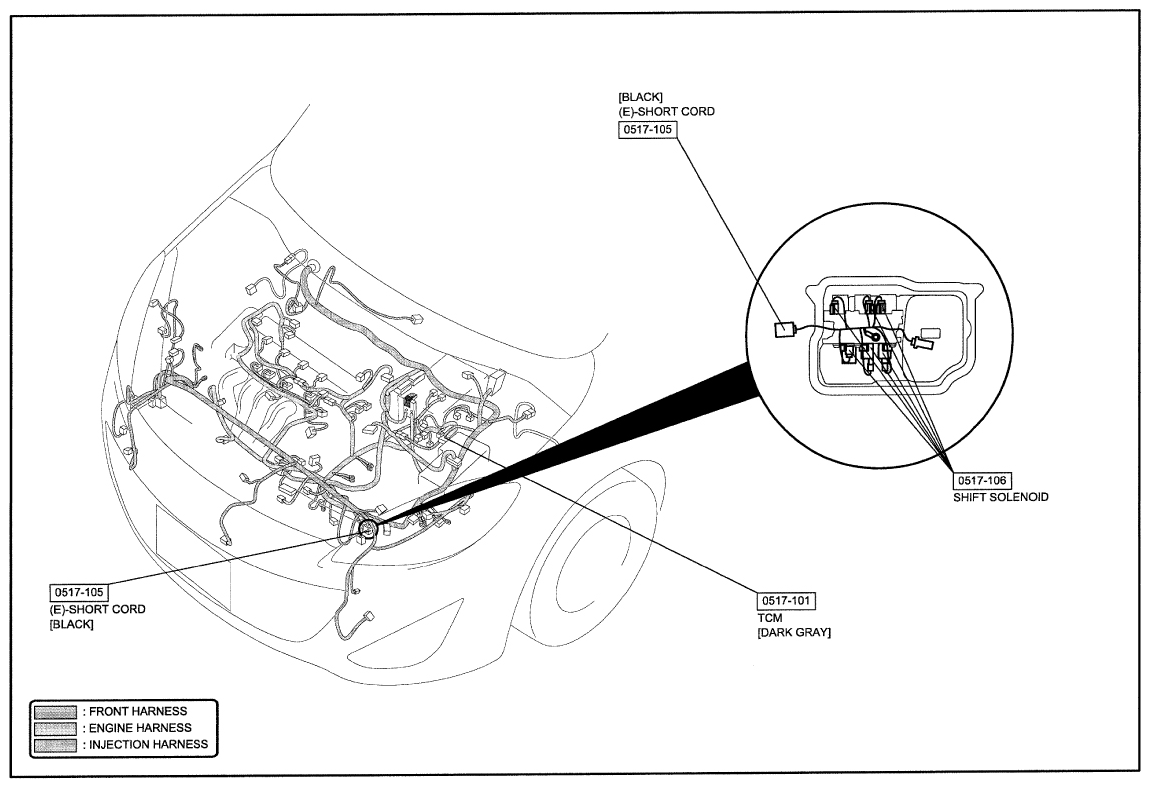

Fig 8: Automatic Transaxle Control System Wiring Diagram - 0517-1d (2 Of 2)
G09125028Courtesy of MAZDA MOTORS CORP.

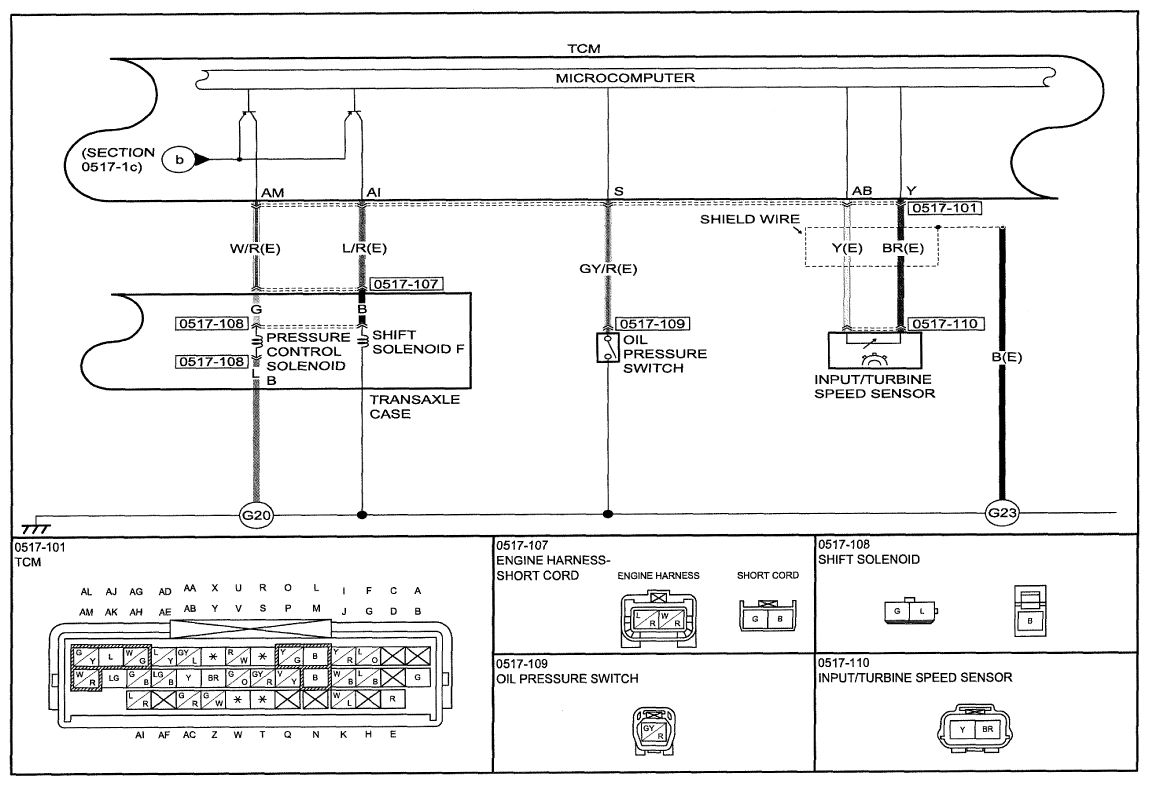

Fig 9: Automatic Transaxle Control System Wiring Diagram - 0517-1e (1 Of 2)
G09125029Courtesy of MAZDA MOTORS CORP.

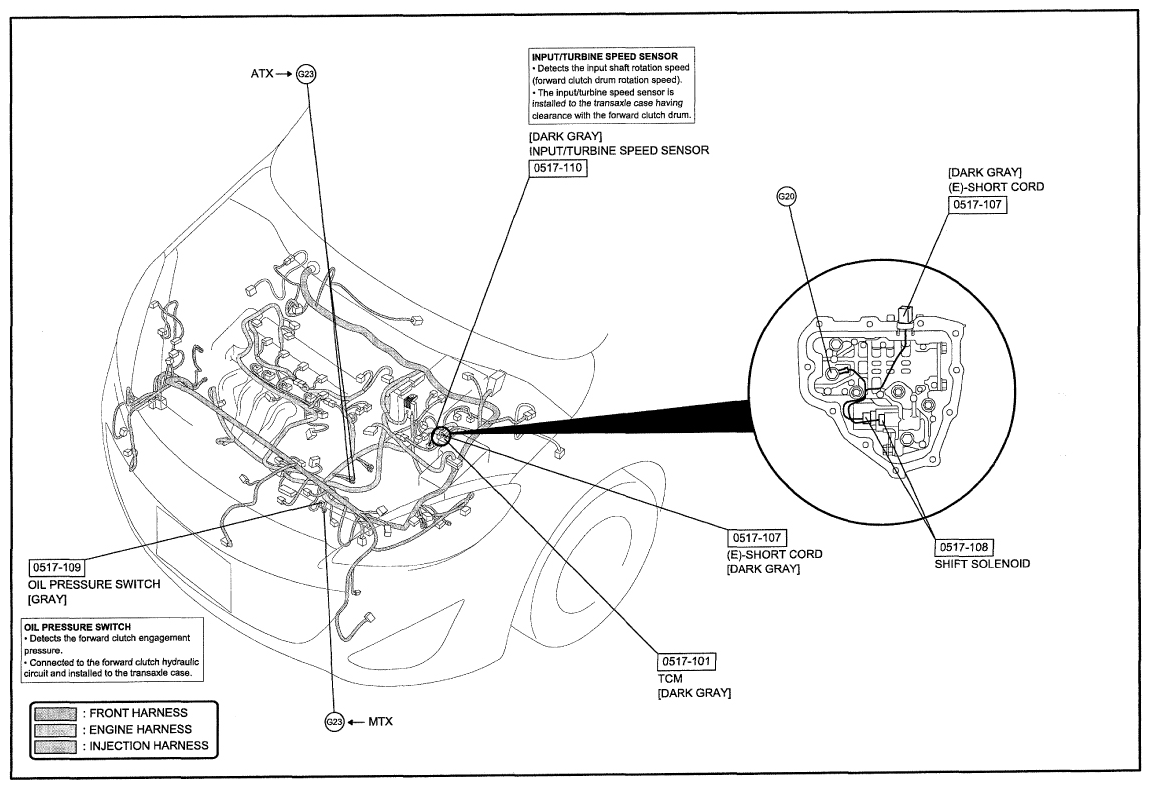

Fig 10: Automatic Transaxle Control System Wiring Diagram - 0517-1e (2 Of 2)
G09125030Courtesy of MAZDA MOTORS CORP.

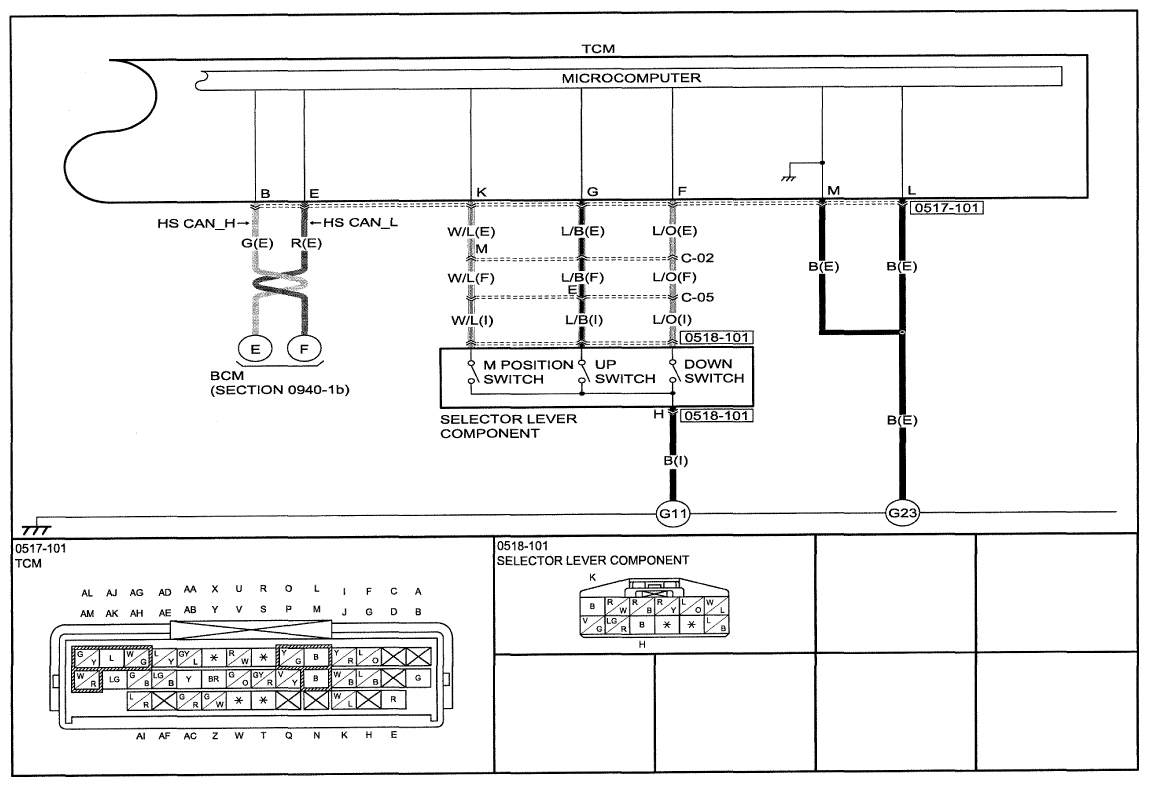

Fig 11: Automatic Transaxle Control System Wiring Diagram - 0517-1f (1 Of 2)
G09125031Courtesy of MAZDA MOTORS CORP.

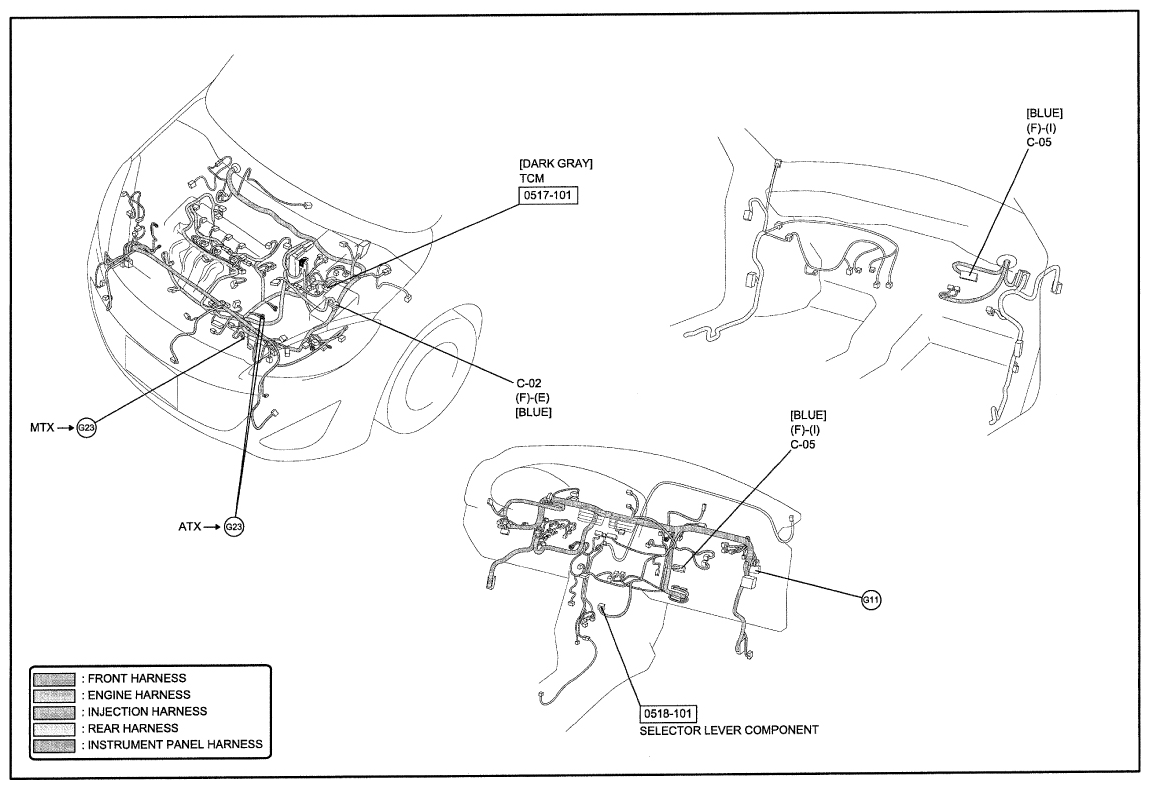

Fig 12: Automatic Transaxle Control System Wiring Diagram - 0517-1f (2 Of 2)
G09125032Courtesy of MAZDA MOTORS CORP.
