Radiator Mount Installation Note

  1. Install the radiator mount so that the arrow on it is pointed toward the front of the vehicle.

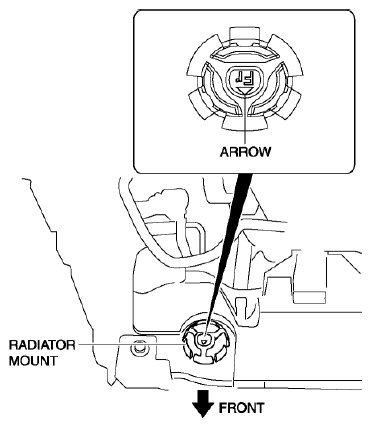

    Fig 1: Installing Radiator Mount Arrow
    G08150135Courtesy of MAZDA MOTORS CORP.
