| DETECTION CONDITION |
- If any of the following conditions continue for a specified period of time or more the PCM detects a malfunction in the throttle valve actuator.
- The voltage of the motor power supply is 4 V or less
while the motor relay is on.
- There is a system error in the electrical throttle control system of the PCM.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- The DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Stops the idle air control.
- Stops the drive-by-wire control and sets to a throttle valve opening angle necessary for the minimum driveability.
- Limits the vehicle speed to less than 20 km/h {12 mph}
.
|

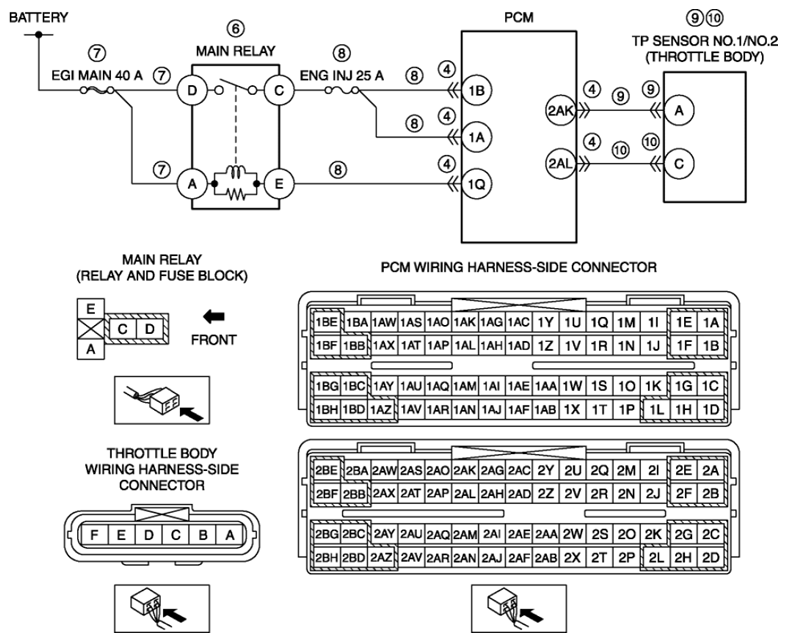

| POSSIBLE CAUSE |
- PCM connector or terminals malfunction
- Main relay malfunction
- Short to ground or open circuit in main relay power supply circuit:
- Short to ground in wiring harness between the following terminals:
- EGI MAIN 40 A fuse-Main relay terminal D
- EGI MAIN 40 A fuse-Main relay terminal A
- EGI MAIN 40 A fuse malfunction
- Open circuit in wiring harness between the following terminals:
- Battery positive terminal-Main relay terminal D
- Battery positive terminal-Main relay terminal A
- Short to ground or open circuit in main relay control circuit:
- Short to ground in wiring harness between the following terminals:
- ENG INJ 25 A fuse-PCM terminal 1B
- ENG INJ 25 A fuse-PCM terminal 1A
- Main relay terminal E-PCM terminal 1Q
- ENG INJ 25 A fuse malfunction
- Open circuit in wiring harness between the following terminals:
- Main relay terminal C-PCM terminal 1B
- Main relay terminal C-PCM terminal 1A
- Main relay terminal E-PCM terminal 1Q
- TP sensor No. 1 and/or related circuit malfunction
- TP sensor No. 2 and/or related circuit malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
