Connector Terminal Inspection Method

  1. Inspect the connection of each female terminal.
  2. Insert the male terminal to the female terminal and inspect the female terminal for looseness.

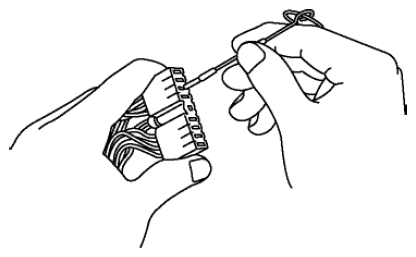

    Fig 1: Inspecting Female Terminal
    G08150828Courtesy of MAZDA MOTORS CORP.
