Power Window Main Switch

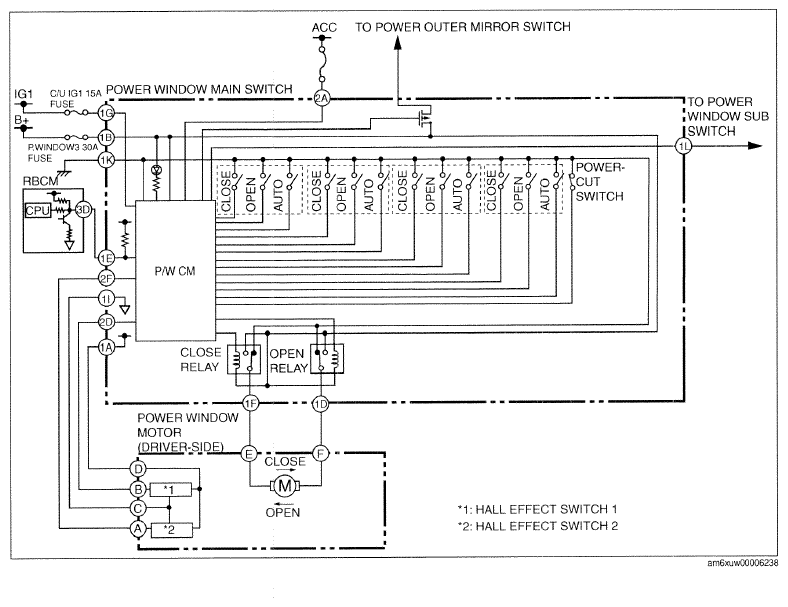

Fig 1: Power Window System - Wiring Diagram - Main Switch
Courtesy of MAZDA MOTORS CORP.
