Power Window Subswitch

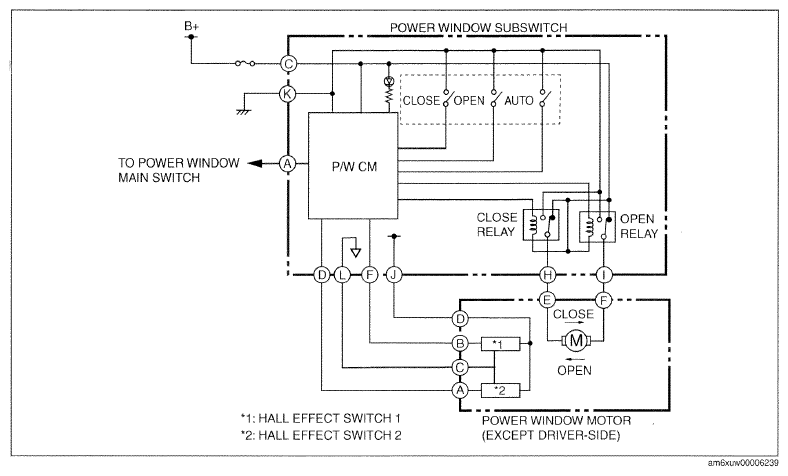

Fig 1: Power Window System - Wiring Diagram - Subswitch
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
