Power Window System Wiring Diagram [Power Window Systems (With Auto-Open/Close Function For Driver-Side)]

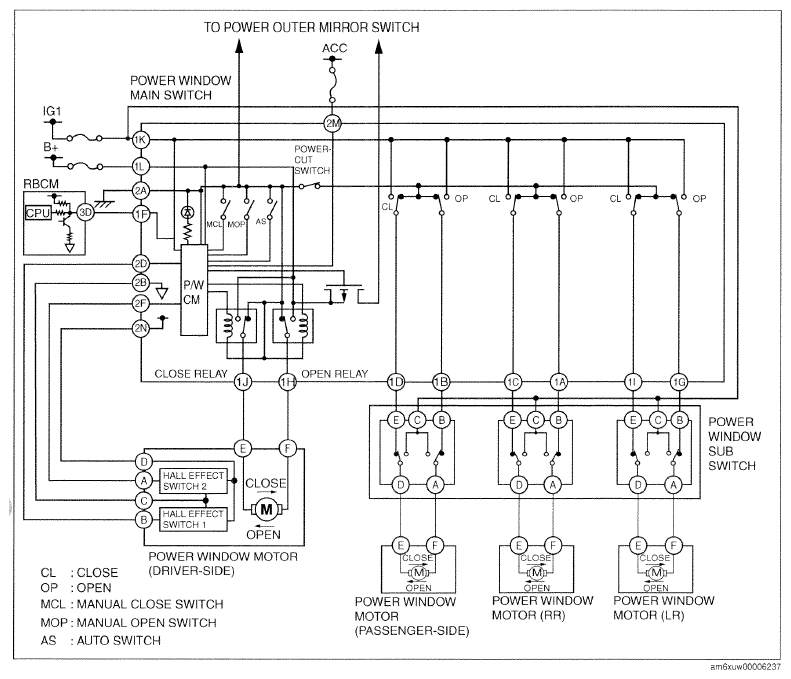

Fig 1: Power Window System - Wiring Diagram
G09787353Courtesy of MAZDA MOTORS CORP.
