Rear Wheel Alignment

REAR WHEEL ALIGNMENT [DIMENSIONS]







Total Toe-in Adjustment

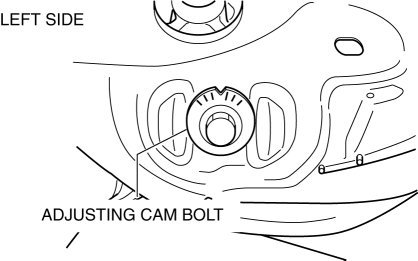

1. Loosen the installation nut of the adjusting cam bolt.
2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.










3. Tighten the nut.

Tightening torque
- 84 - 101 N.m {8.6 - 10 kgf.m, 62 - 74 ft.lbf}
