Power Window Regulator Disassembly/Assembly: Notes

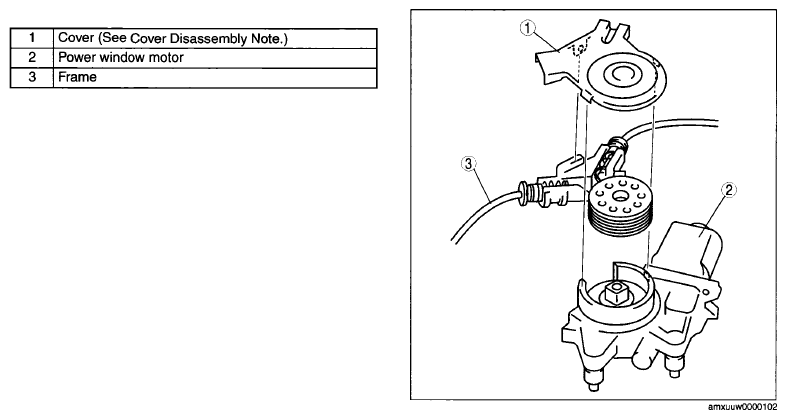

- Remove in the order indicated in the figure.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
NOTE:
- When installing the power window motor, be careful that the cable does not become unwounded from the drum.
