Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipes to the DSC HU/CM and brake pipe joint referring to the illustration.
  2. Tighten the brake pipes to the specified torque.

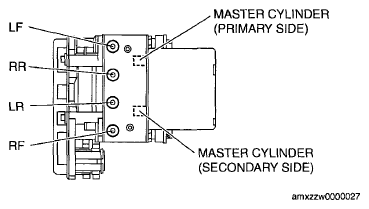

    Fig 1: Identifying Brake Pipe Installation Locations
    G06151340Courtesy of MAZDA MOTORS CORP.
