Heated Oxygen Sensor (Ho2S) Removal/Installation
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] ).

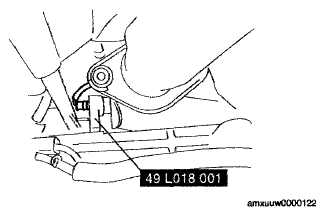

- Install the SST to the HO2S.
- Remove the HO2S.
- Install in the reverse order of removal.
HO2S tightening torque
29-49 N.m {3.0-4.9 kgf.m, 22-35 ft.lbf}
