Quick Diagnostic Chart

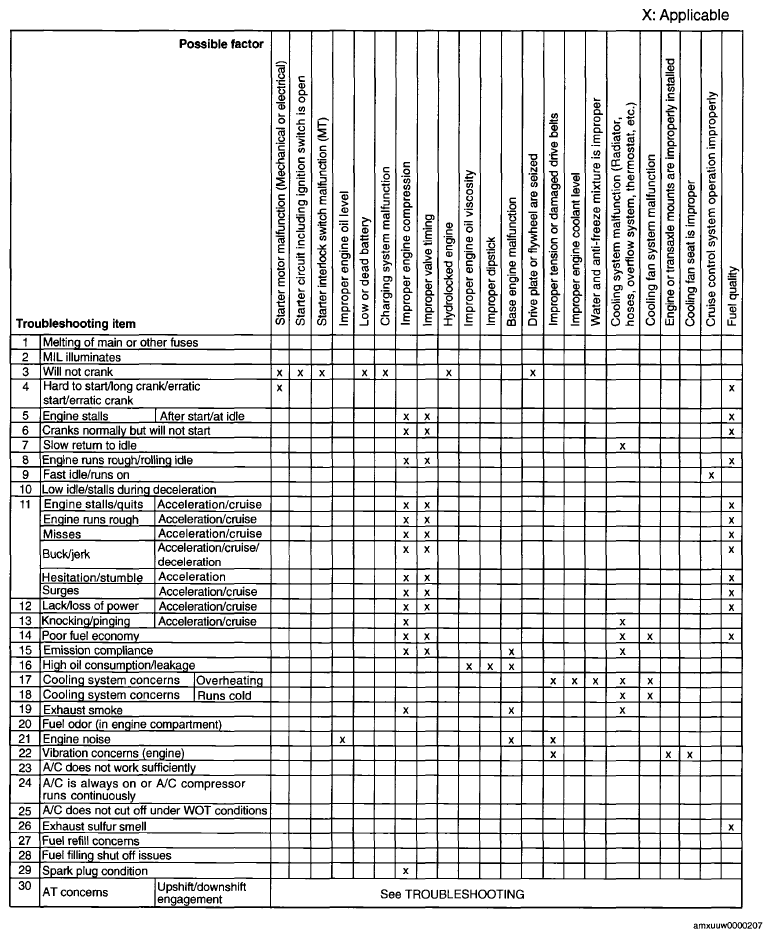

Fig 1: Quick Diagnostic Chart - LF (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

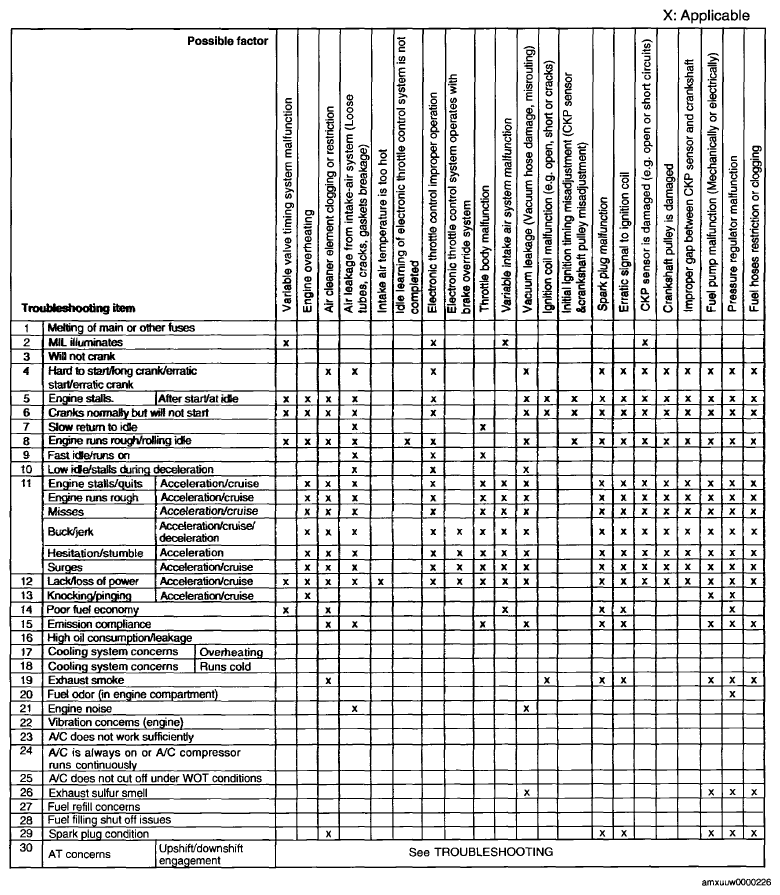

Fig 2: Quick Diagnostic Chart - LF (2 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 3: Quick Diagnostic Chart - LF (3 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Quick Diagnostic Chart - LF (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
