Advanced Keyless Entry System/Push Button Start System/Immobilizer System

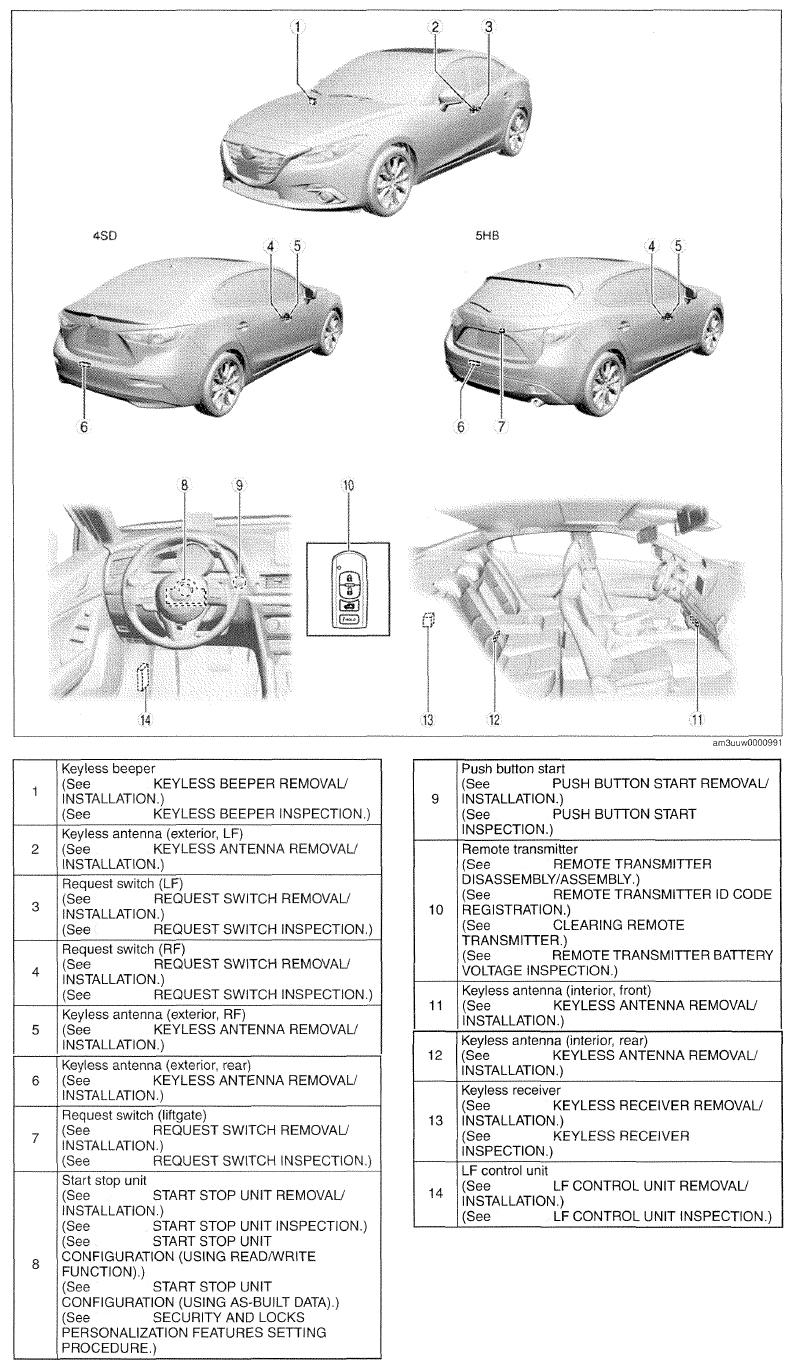

Fig 1: Advanced Keyless Entry System/Push Button Start System/Immobilizer System Components Location
G09771895Courtesy of MAZDA MOTORS CORP.
