BSM Control Module And Power Outer Mirror Connector End View

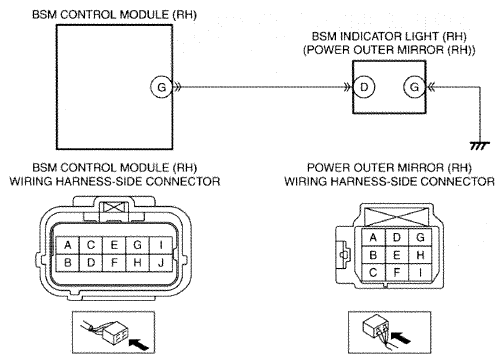

Fig 1: BSM Control Module And Power Outer Mirror Connector End View
G09783540Courtesy of MAZDA MOTORS CORP.
