Clock Spring Connector End View

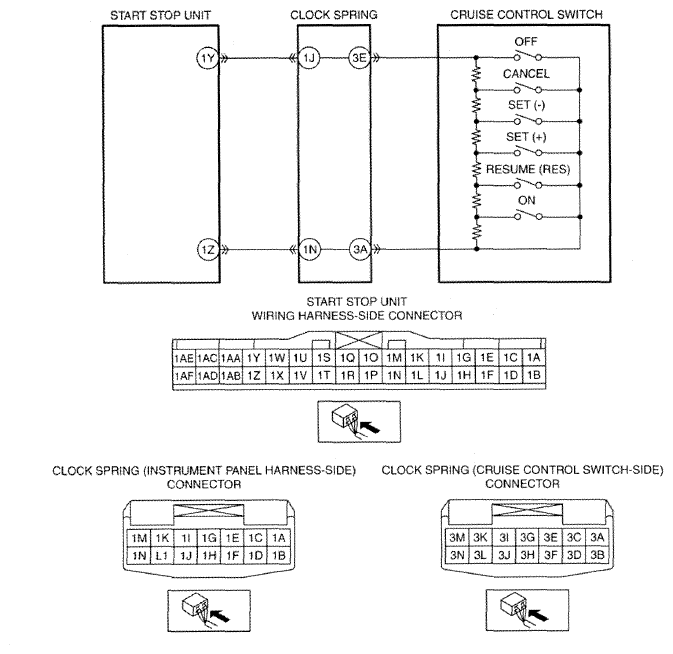

Fig 1: Clock Spring Connector End View
G09771856Courtesy of MAZDA MOTORS CORP.

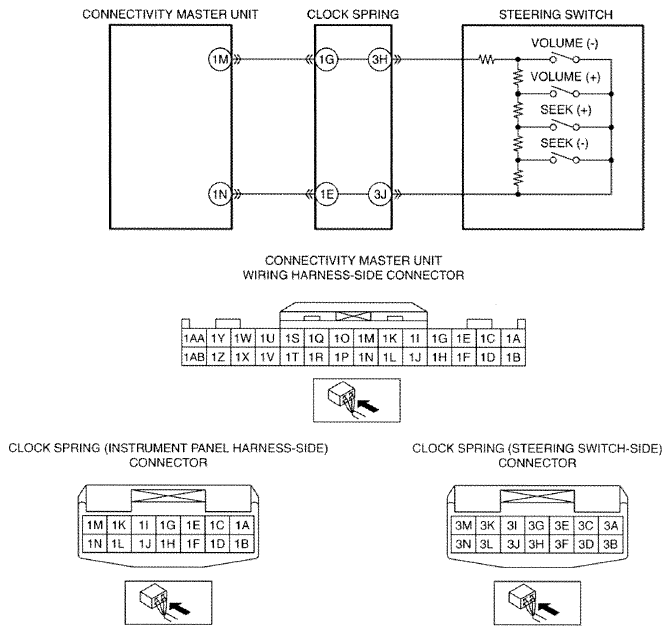

Fig 1: Clock Spring Connector End View
G09783561Courtesy of MAZDA MOTORS CORP.
