FBCM (Front Body Control Module) Connector End View

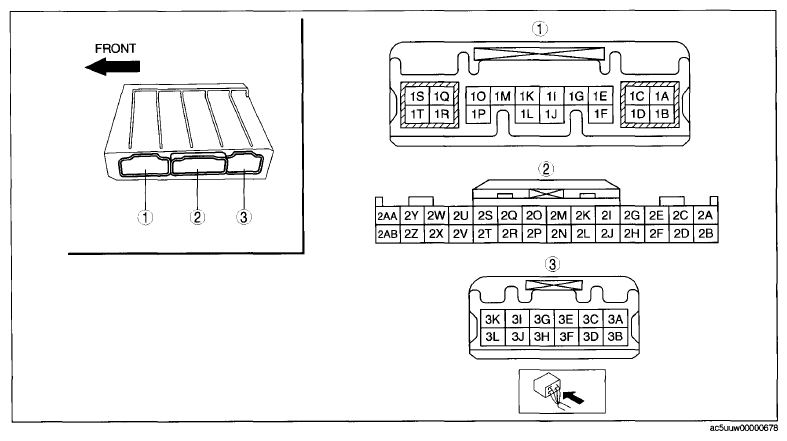

Fig 1: FBCM (Front Body Control Module) Connector End View
G09077900Courtesy of MAZDA MOTORS CORP.
