Auto Reverse Pinch Protection Function Inspection
AUTO REVERSE PINCH PROTECTION FUNCTION DESCRIPTION
| STEP |
INSPECTION |
ACTION |
| 1 |
- Switch the ignition ON (engine off or on).
- Fully open the driver-side power window.

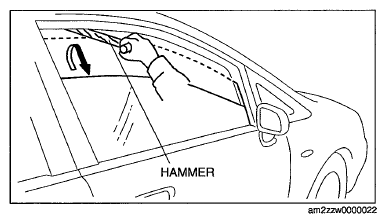

- Set the hammer (thickness: 10 mm {0.39 in} or more)
as shown in figure below. Then, close the power window.
- Verify that the power window opens approx. 200 mm {2.87 in}
after contacting the hammer and the operation stops.
- Does auto reverse pinch protection function operate properly?
|
Yes |
Auto reverse pinch protection function is normal. |
| No |
Go to the next step. |
| 2 |
- Does power window open before contacting the hammer?
|
Yes |
Go to
DRIVER-SIDE DOOR GLASS REVERSE OPENS DURING AUTO-CLOSE (MANUAL-CLOSE) OPERATION (MIS REVERSE OPEN) . |
| No |
Initialize the power window main switch.
NOTE:
- Before initializing the power window main switch, cut off the power supply to the power window main switch for approx. 60 s
. Then, reconnect it again after approx. 60 s:
- Disconnect the negative battery cable.
- Disconnect the power window main switch connector.
- Remove the fuse for the power window system.
|
