Door Glass Other Than Driver's Door Cannot Be Operated (Cannot Be Operated Using Power Window Main Switch But Can Be Operated Using Each SUBSWITCH): Notes

DOOR GLASS DETECTION CONDITION AND POSSIBLE CAUSE

Description	Door glass other than driver's door can be operated using subswitches but cannot be operated using power window main switch

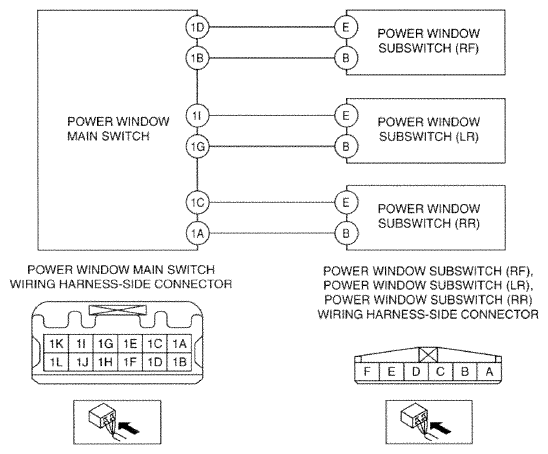

Possible Causes	Power window main switch malfunction Short to ground in wiring harness between the following terminals: Power window main switch terminal 1D and power window subswitch (RF) terminal E Power window main switch terminal 1B and power window subswitch (RF) terminal B Power window main switch terminal 11 and power window subswitch (LR) terminal E Power window main switch terminal 1G and power window subswitch (LR) terminal B Power window main switch terminal 1C and power window subswitch (RR) terminal E Power window main switch terminal 1A and power window subswitch (RR) terminal B Open circuit in wiring harness between the following terminals: Power window main switch terminal 1D and power window subswitch (RF) terminal E Power window main switch terminal 1B and power window subswitch (RF) terminal B Power window main switch terminal 11 and power window subswitch (LR) terminal E Power window main switch terminal 1G and power window subswitch (LR) terminal B Power window main switch terminal 1C and power window subswitch (RR) terminal E Power window main switch terminal 1A and power window subswitch (RR) terminal B Connector poor contact or terminal damage
Courtesy of MAZDA MOTORS CORP.
