Driver-Side Door Glass Can Be Operated Manually But Cannot Be Operated Automatically: Notes

DOOR GLASS OPERATION DESCRIPTION

Description	Driver-side door glass cannot be operated automatically but can be operated manually using power window main switch

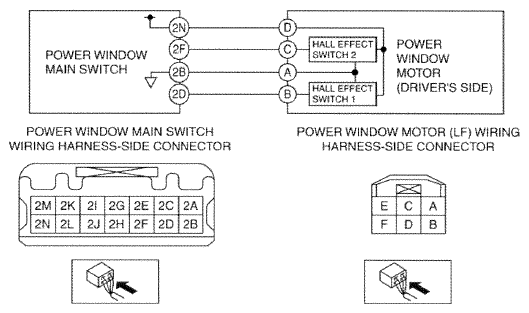

Possible Causes	Power window main switch malfunction Power window motor malfunction Open circuit in wiring harness between the following terminals: Power window main switch terminal 2D and power window motor Power window main switch terminal 2B and power window motor Power window main switch terminal 2F and power window motor Power window main switch terminal 2N and power window motor Short to ground in wiring harness between the following terminals: Power window main switch terminal 2D and power window motor Power window main switch terminal 2F and power window motor Power window main switch terminal 2N and power window motor Short to power supply in wiring harness between the following terminals: Power window main switch terminal 2D and power window motor Power window main switch terminal 2F and power window motor Connector poor contact or terminal damage
Courtesy of MAZDA MOTORS CORP.
