Data Link Connector

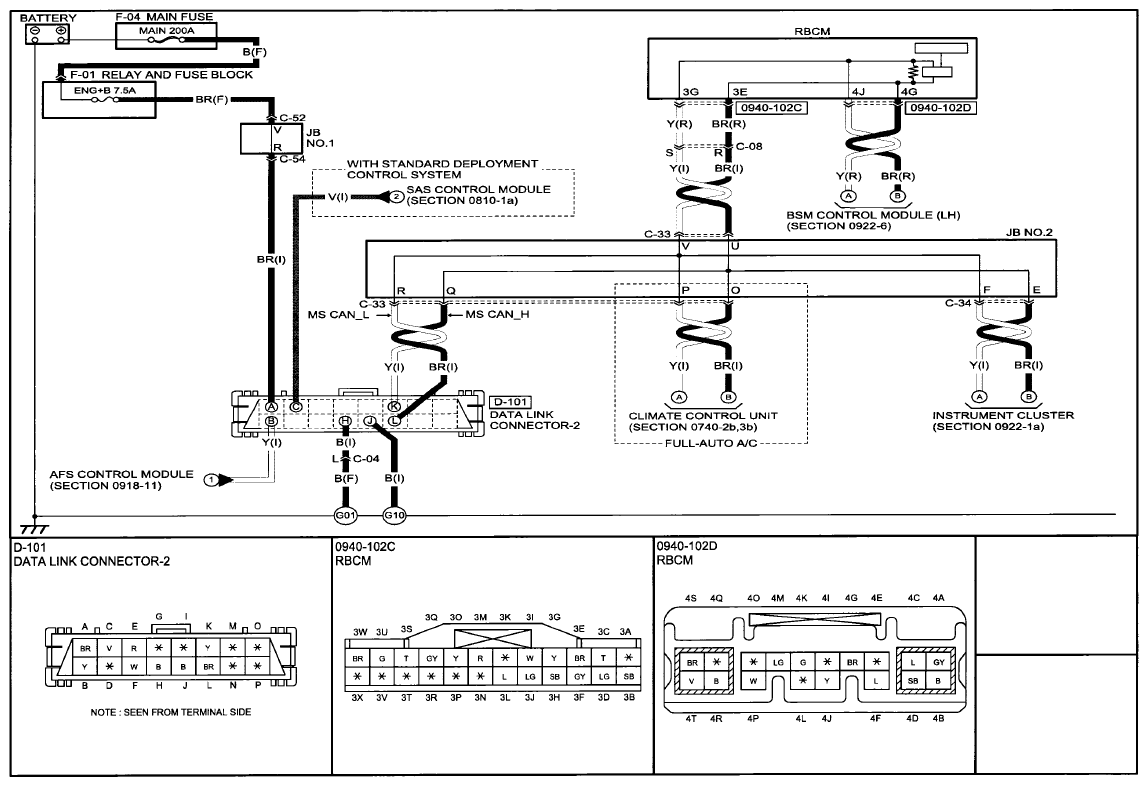

Fig 1: Data Link Connector Communication Diagram (00D-A)
G09756404Courtesy of MAZDA MOTORS CORP.

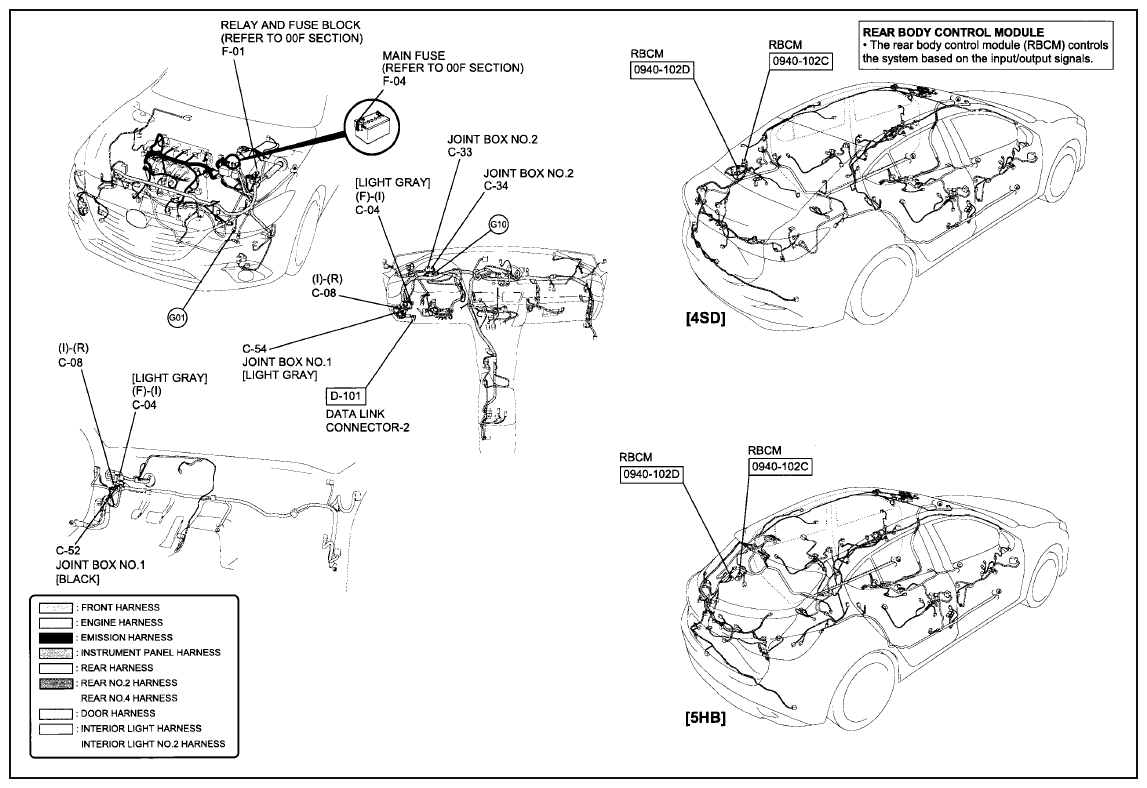

Fig 2: Data Link Connector Wiring Harness (00D-A)
G09756405Courtesy of MAZDA MOTORS CORP.

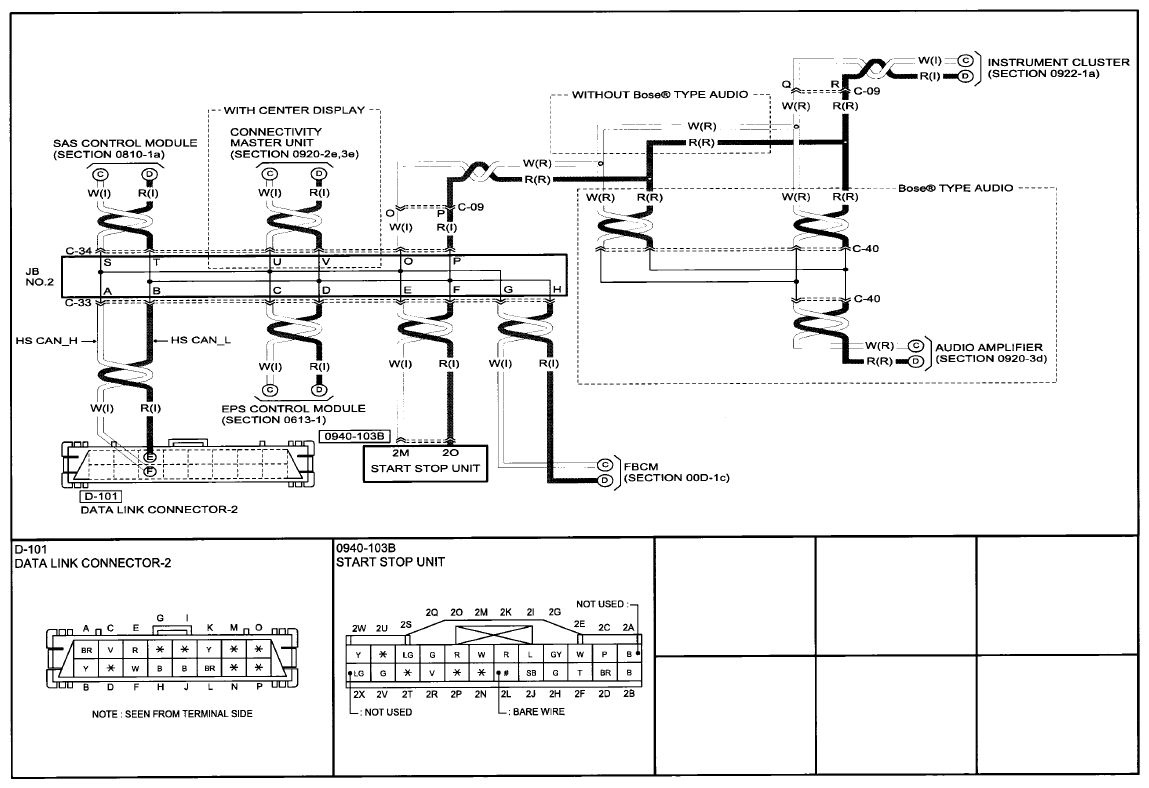

Fig 3: Data Link Connector Communication Diagram (00D-B)
G09756406Courtesy of MAZDA MOTORS CORP.

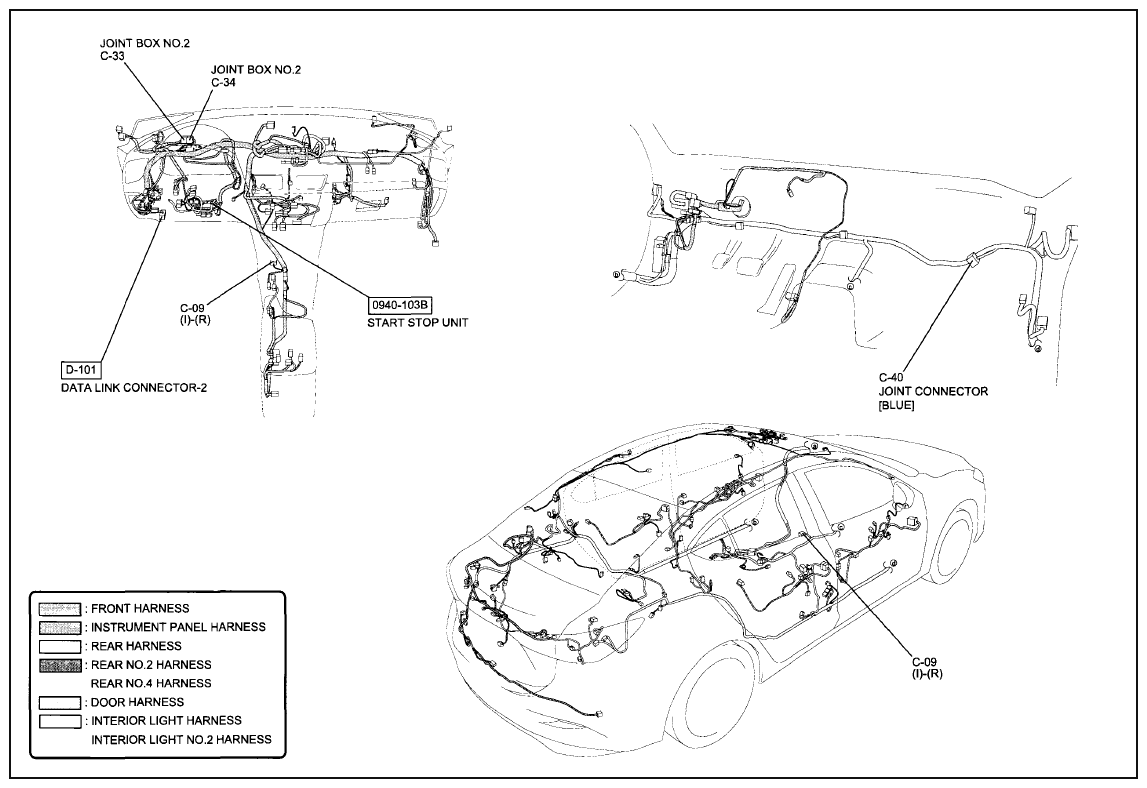

Fig 4: Data Link Connector Wiring Harness (00D-B)
G09756407Courtesy of MAZDA MOTORS CORP.

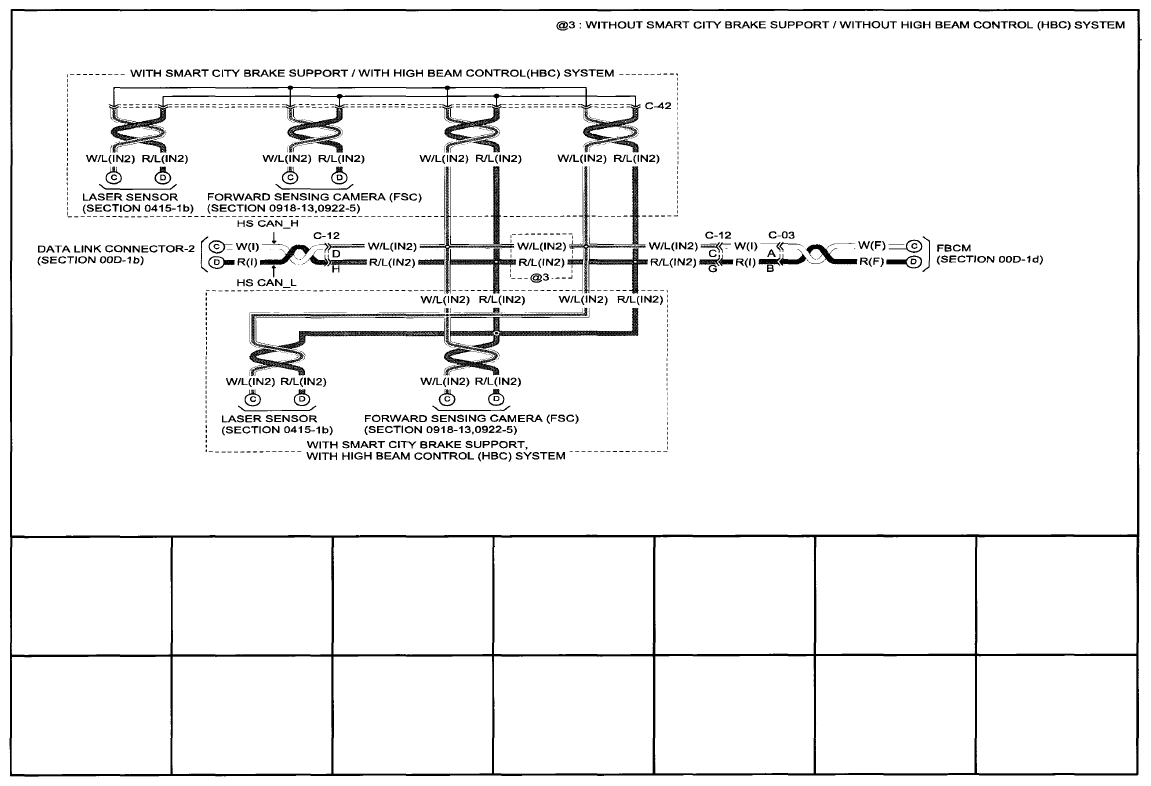

Fig 5: Data Link Connector Communication Diagram (00D-C)
G09756408Courtesy of MAZDA MOTORS CORP.

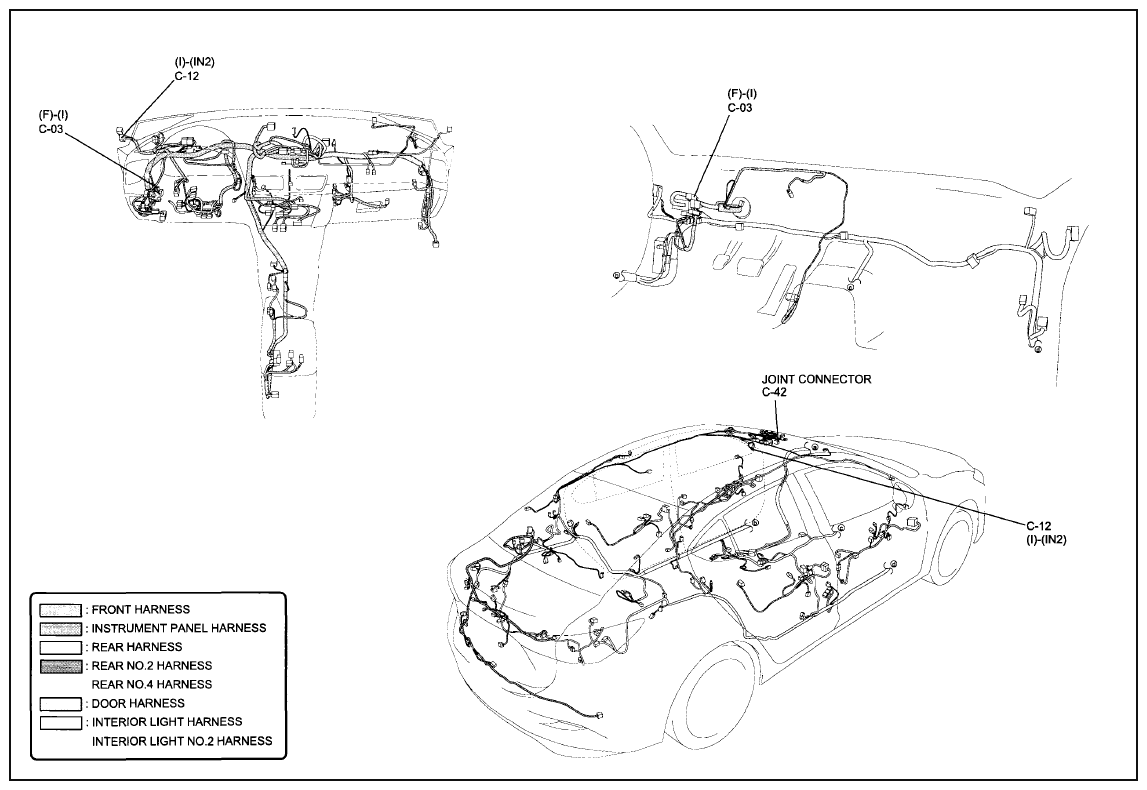

Fig 6: Data Link Connector Wiring Harness (00D-C)
G09756409Courtesy of MAZDA MOTORS CORP.

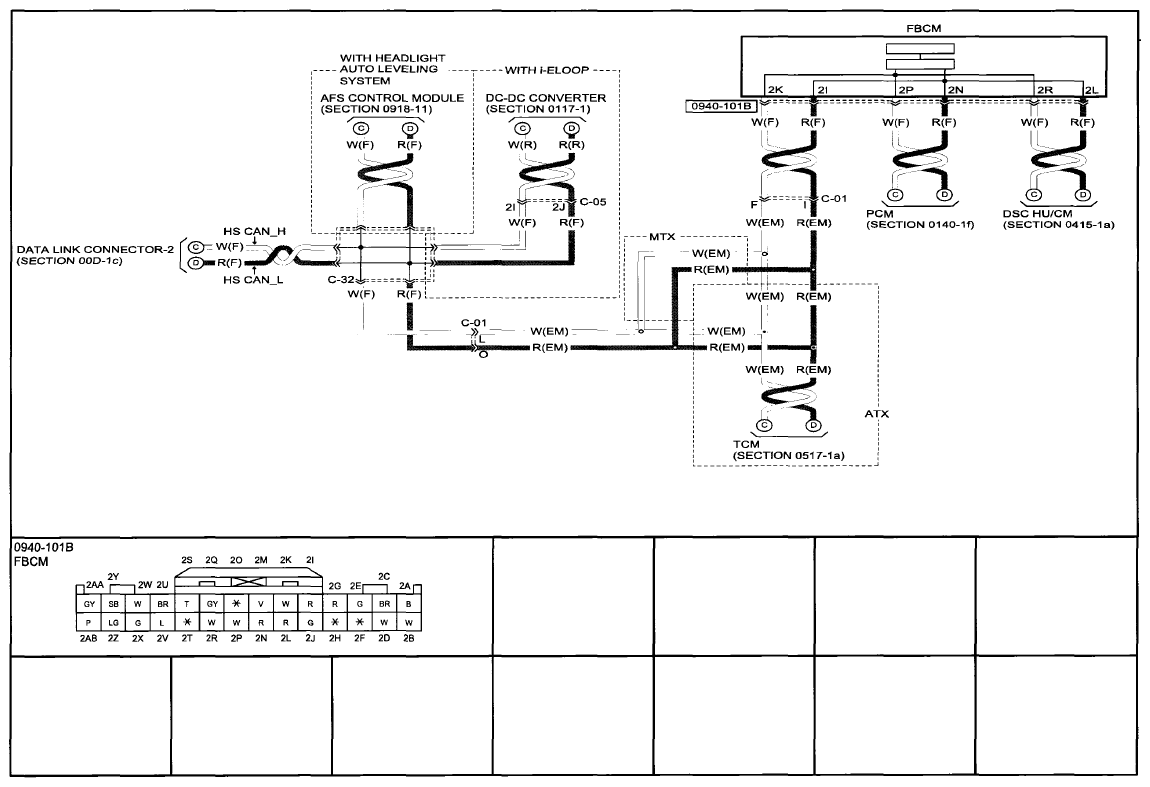

Fig 7: Data Link Connector Communication Diagram (00D-D)
G09756410Courtesy of MAZDA MOTORS CORP.

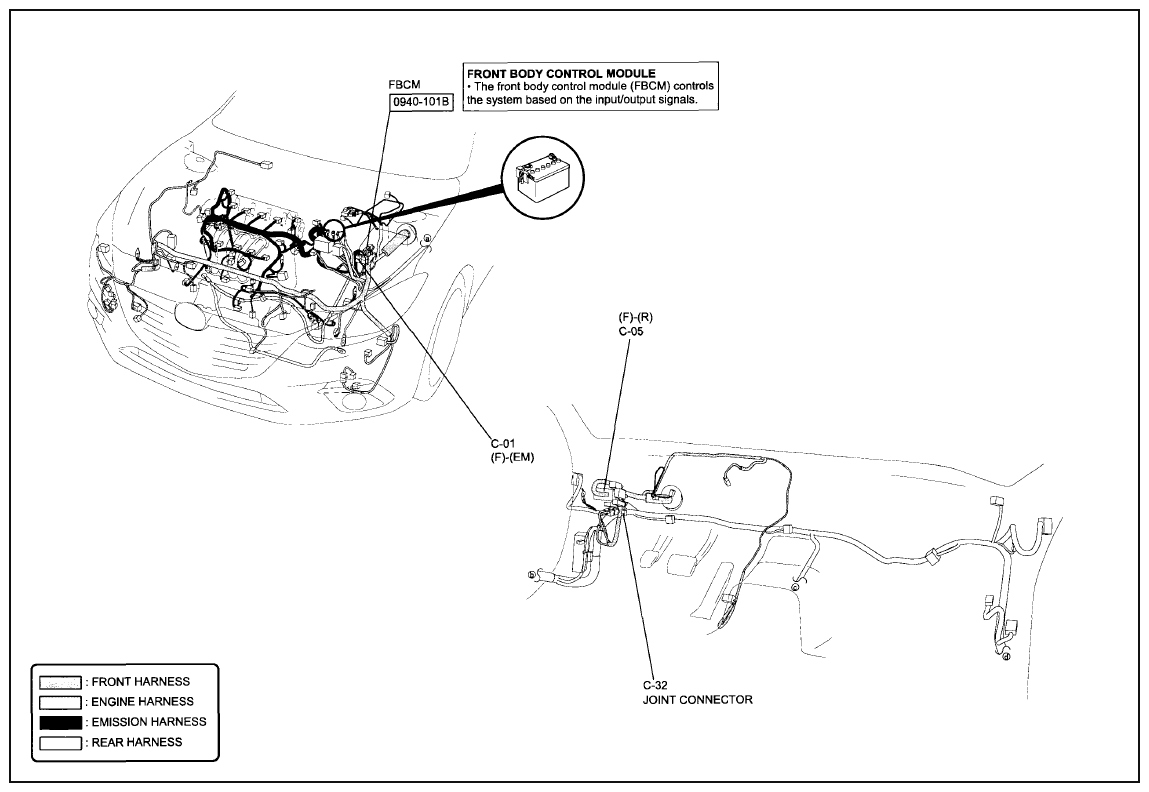

Fig 8: Data Link Connector Wiring Harness (00D-D)
G09756411Courtesy of MAZDA MOTORS CORP.

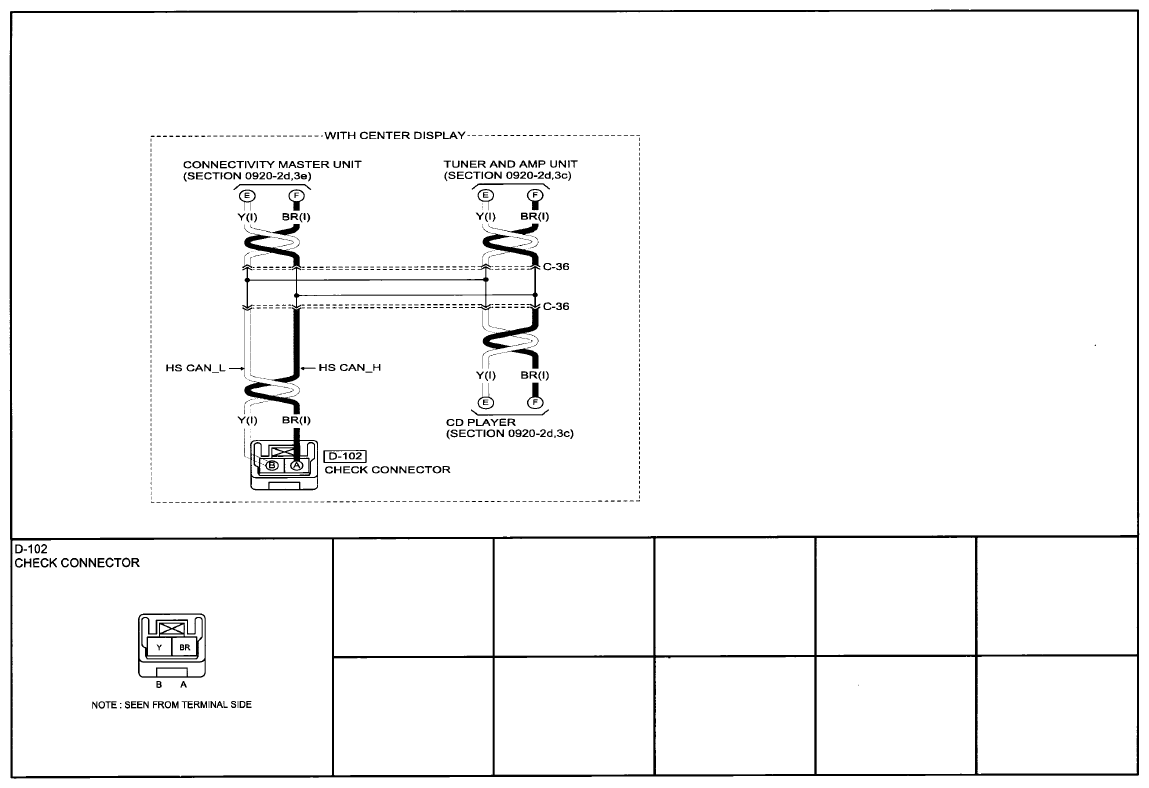

Fig 9: Data Link Connector Communication Diagram (00D-E)
G09756412Courtesy of MAZDA MOTORS CORP.

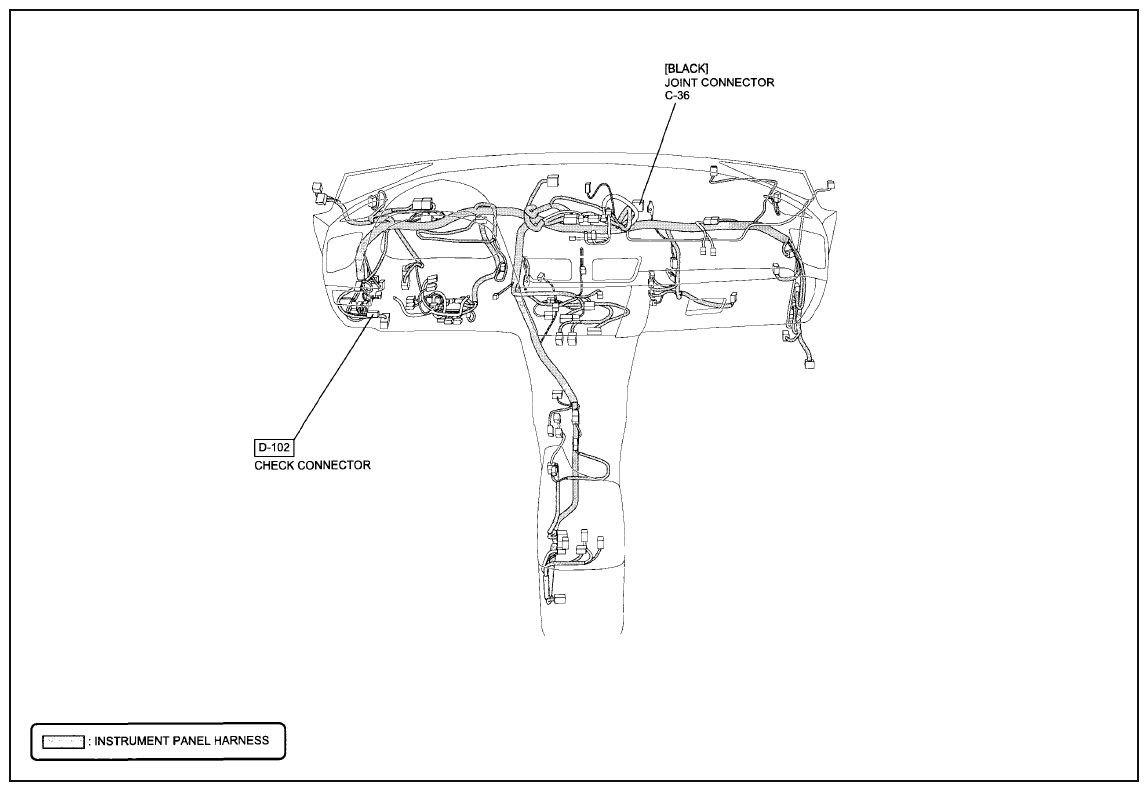

Fig 10: Data Link Connector Wiring Harness (00D-E)
G09756413Courtesy of MAZDA MOTORS CORP.
