Dynamic Stability Control System

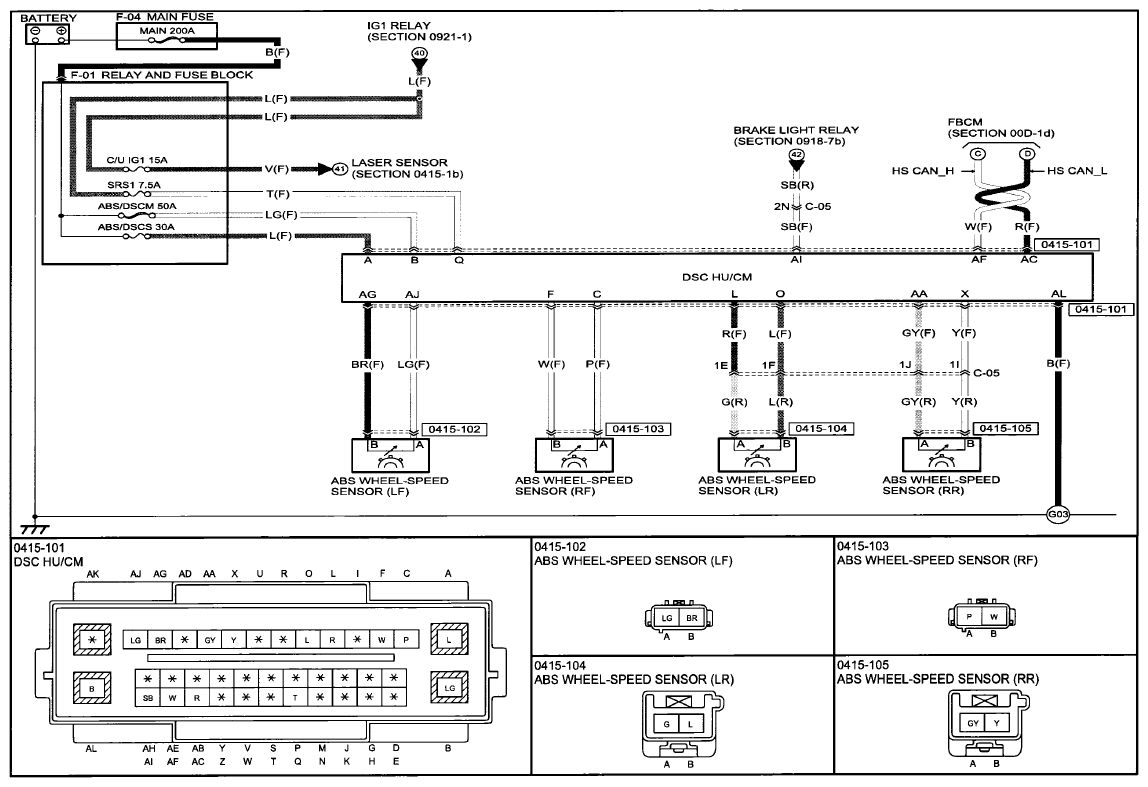

Fig 1: Dynamic Stability Control System Communication Diagram (0415-1A)
Courtesy of MAZDA MOTORS CORP.

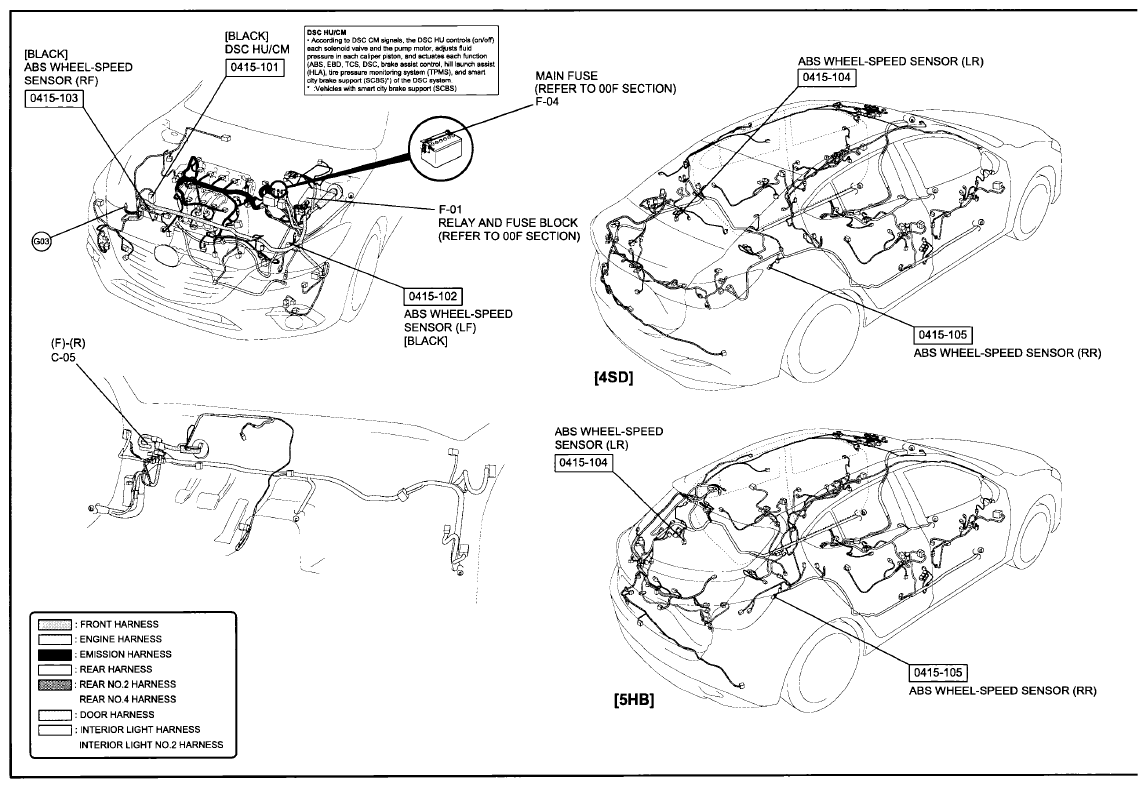

Fig 2: Dynamic Stability Control System Connector Wiring Harness (0415-1A)
Courtesy of MAZDA MOTORS CORP.

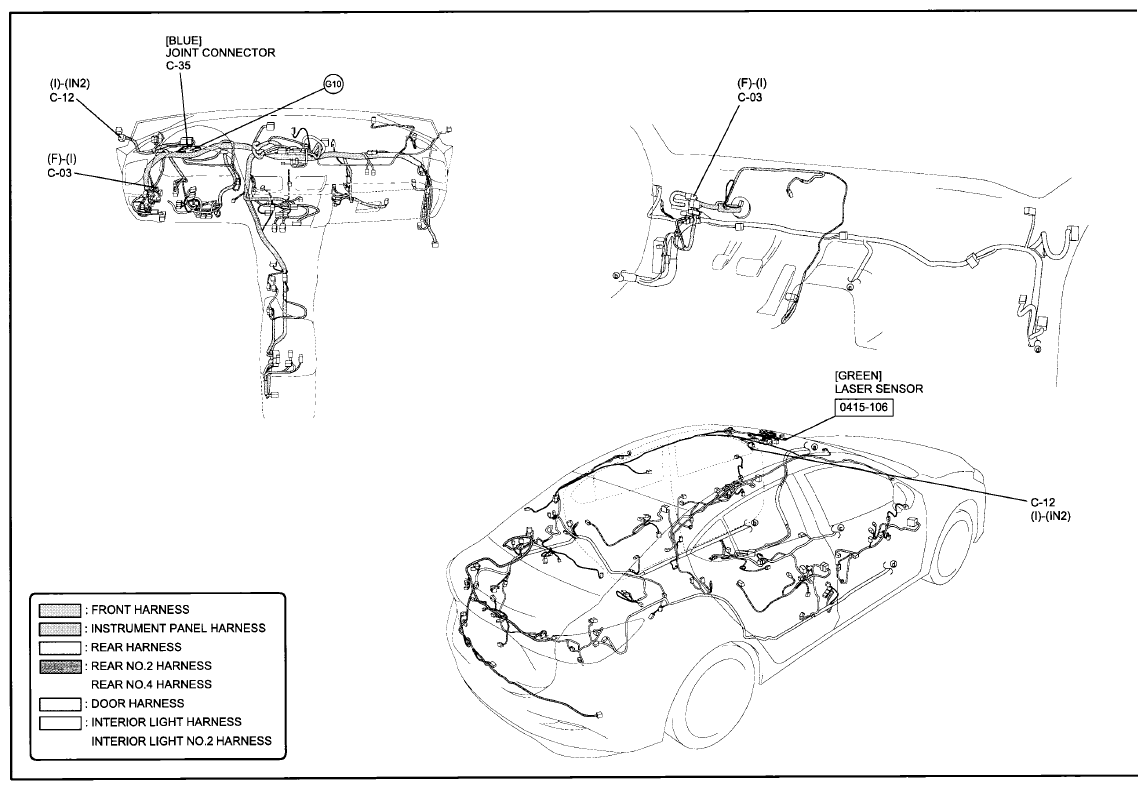

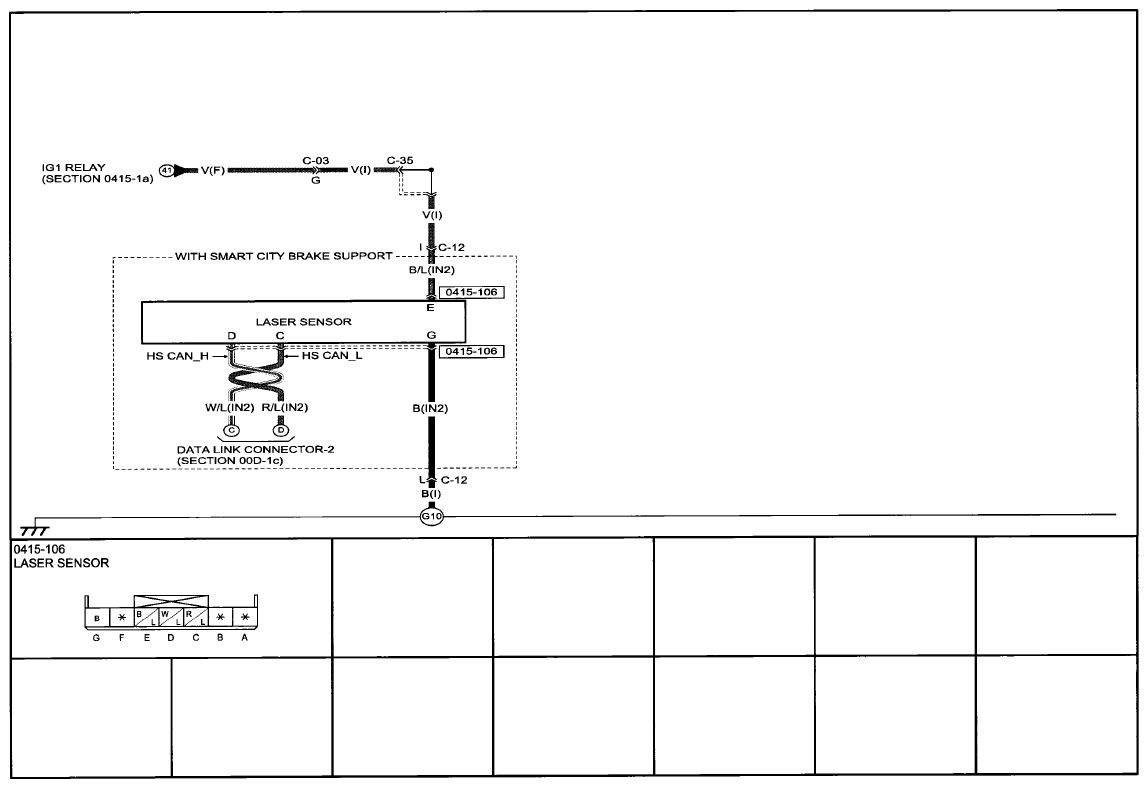

Fig 3: Dynamic Stability Control System Communication Diagram (0415-1B)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Dynamic Stability Control System Connector Wiring Harness (0415-1B)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
