Combiner assembly note

For the combiner assembly, verify that the combiner shaft is within 0.5 mm or more from the end surface of the bracket.

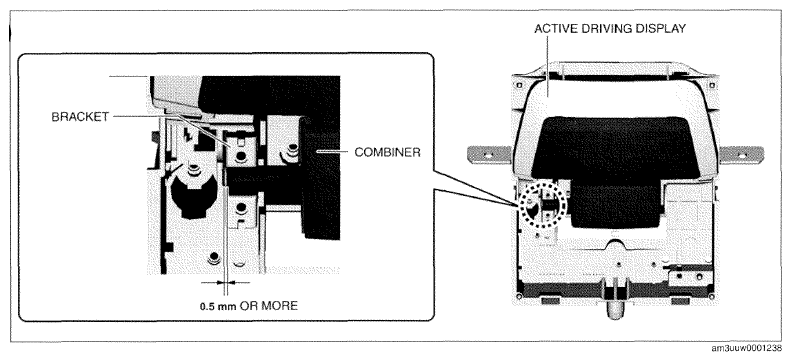

Fig 1: Identifying Combiner Assembly, Spring And Screw
Courtesy of MAZDA MOTORS CORP.
