Exhaust System Insulator Removal/Installation: Notes

  1. Remove the exhaust system insulator in the order shown in the figure.
  2. Install in the reverse order of removal.

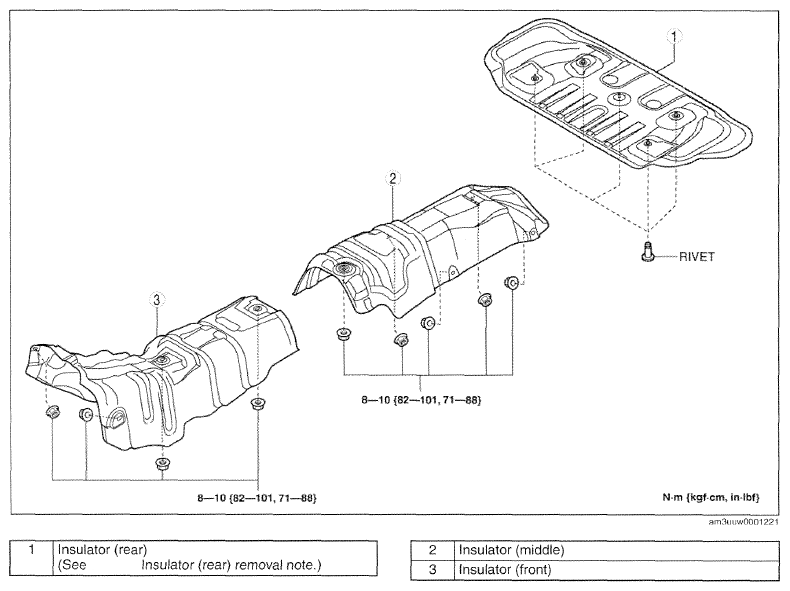

    Fig 1: Exhaust System Insulator Replacement Components With Torque Specifications
    G09782737Courtesy of MAZDA MOTORS CORP.
