Step 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Step 1

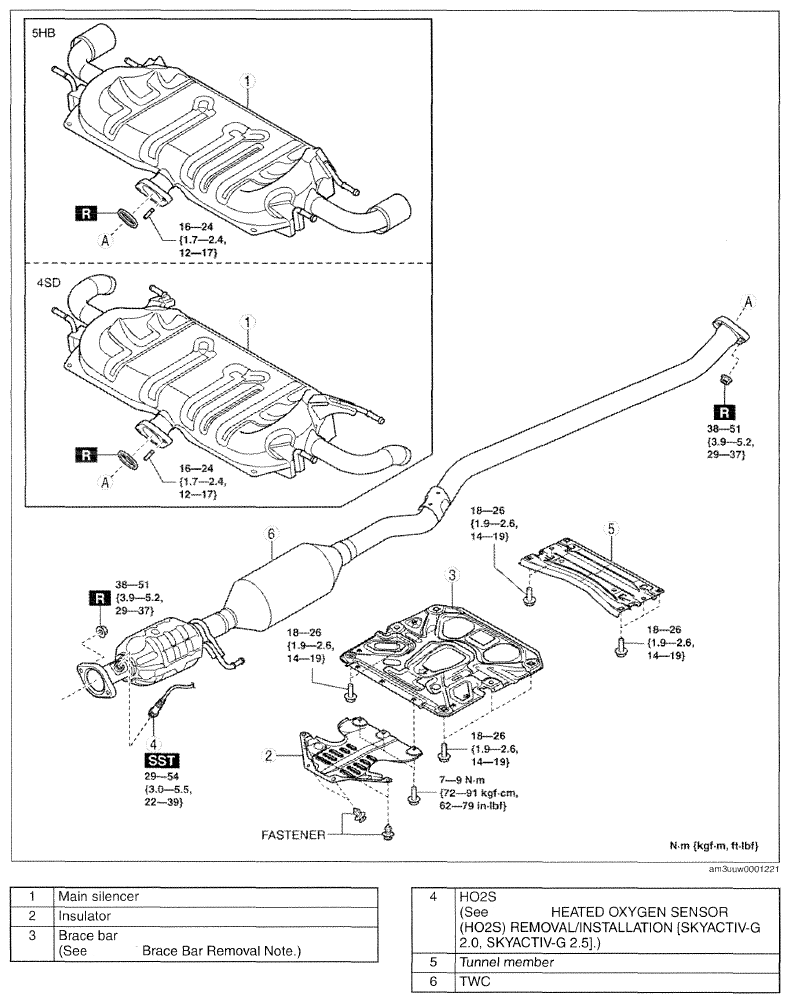

Fig 1: Exploded View Of Exhaust System With Torque Specifications (Step 1)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
