DTC P2091 00: OCV Circuit High Input: Notes
DTC P2091 00 DETECTION CONDITIONS AND POSSIBLE CAUSES (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
| DTC P2091:00 |
OCV circuit high input |
| DETECTION CONDITION |
- The OCV control voltage relative to the PCM control is too high.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Set the exhaust variable valve timing control to the maximum advanced position.
|
| POSSIBLE CAUSE |
- OCV connector or terminals malfunction
- PCM connector or terminals malfunction

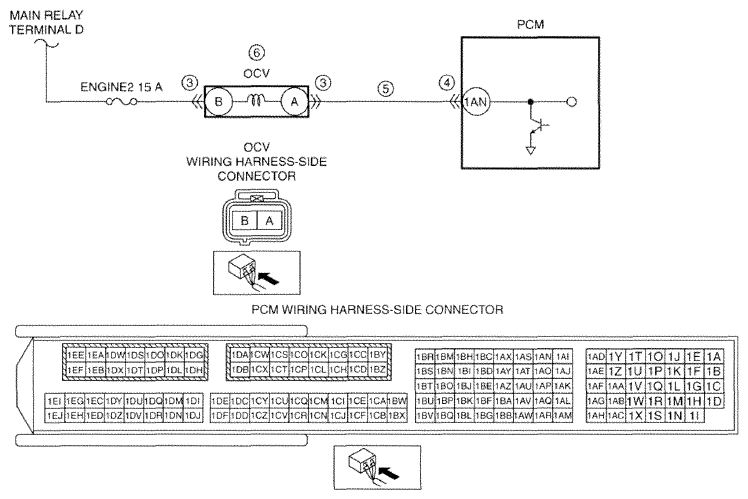

- Short to power supply in wiring harness between OCV terminal A and PCM terminal 1 AN
- OCV malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
